Add an analytics resource group

Resource groups are catalogues containing reference images of faces and alphanumeric combinations of license plates, which are used in analytics cases with the Face recognition and License plates recognition types.

You can add a new group in the following ways:

• On the Analytics resources tab.

• When adding an analytics case on step 3.

Add a resource group on the Analytics resources tab

1. On the Analytics resources tab, select the Add group button.

2. Complete the opened form:

• Enter the name of the group.

• Select the group type:Faces or License plates.

Selecting a different type dynamically changes the form and the available fields.

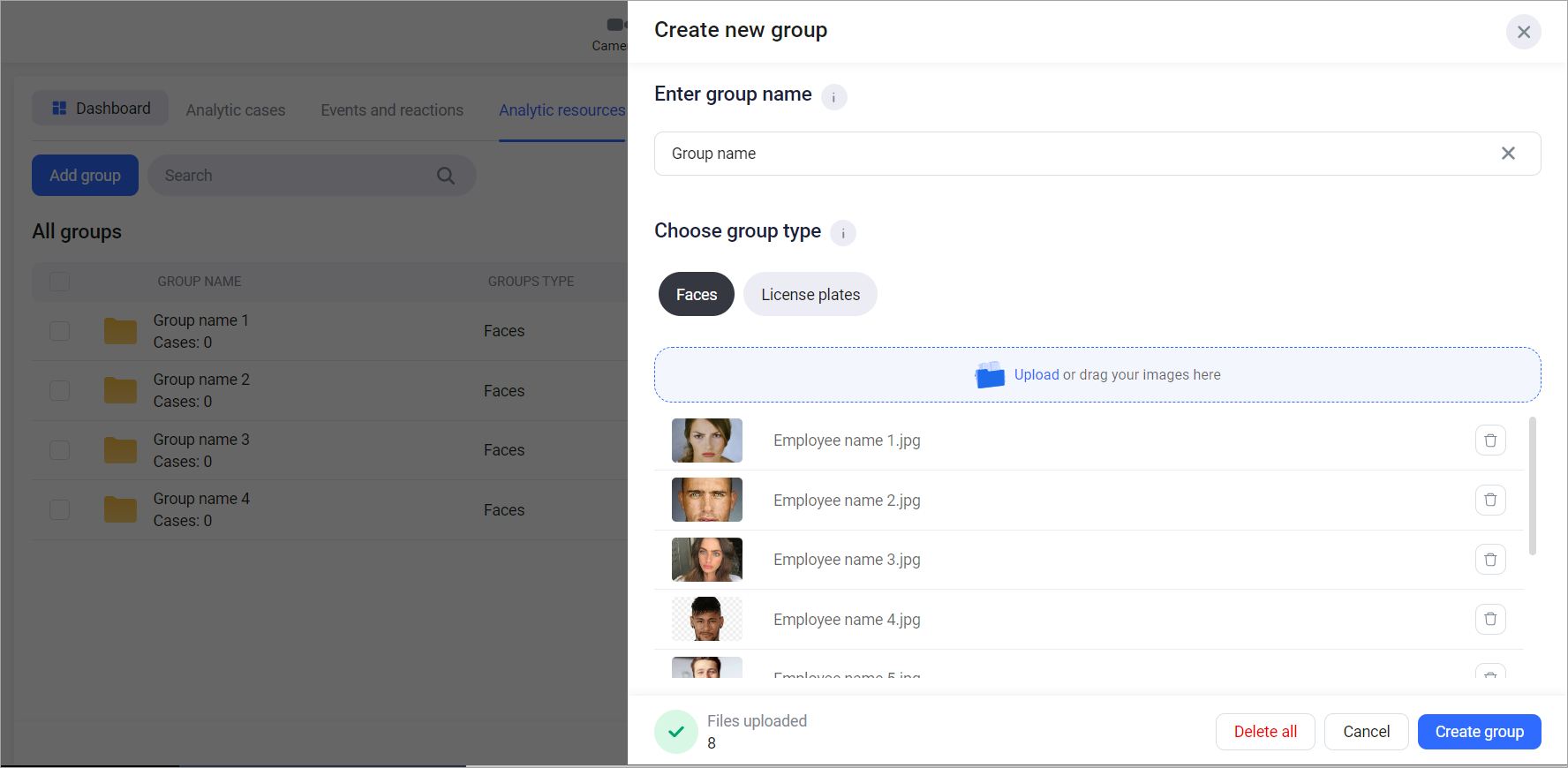

Faces

From within the Faces type, you have the option to add images one at a time or as a batch.

If you upload images with the same name, the new image will be added as a copy.

Subsequently, the specified file name will be displayed as the visitor’s full name when viewing analytic cases.

The image requirements:

• Maximum file size: 3 MB

• Face size: Minimum 80% of frame

• Only one object permitted in the image.

• Supported file formats: JPEG, BMP, PNG, TIFF, PSD

To delete resources from a group:

• To delete a single image, select the Delete button next to it.

• To delete all added resources, select Delete all.

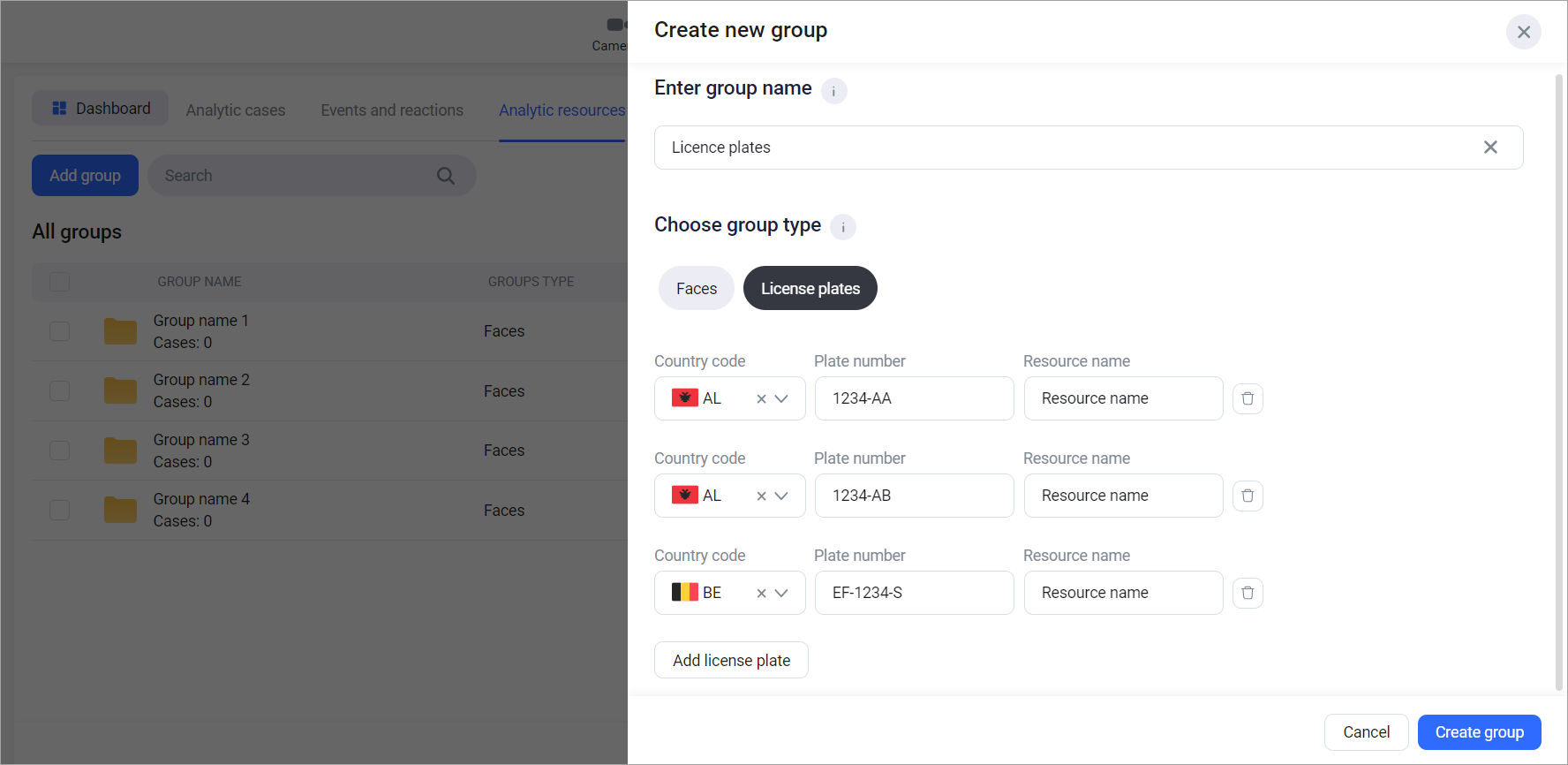

License plates

Selecting the License plates type triggers the display of fields for license plate numbers and resource names.

In the opened window, specify:

• A country code

• A license plate number

• A resource name

• Identical numbers can’t be added.

• Various numbers may have the same resource name.

You can add no more than 100 resources to one group.

To delete a resource, select the Delete icon next to it.

Add a resource group when creating an analytics case

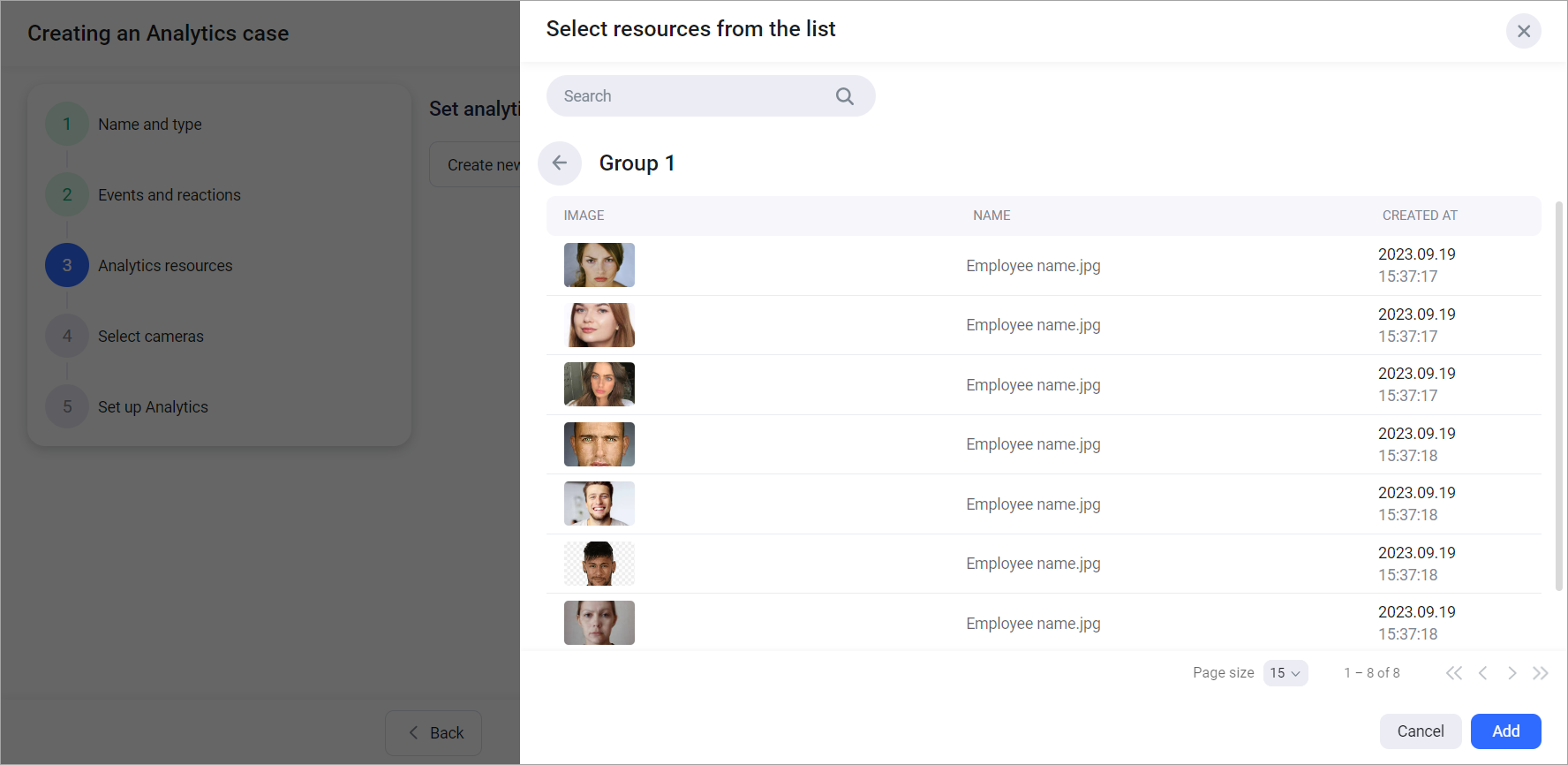

When creating a case with either the Face recognition or License plates analytic type, selecting the Add new reaction button in step 3 will display the resource group form.

The opened form depends on the selected type of analytics in step #1 of creating an analytics case.

For the Face recognition analytics type:

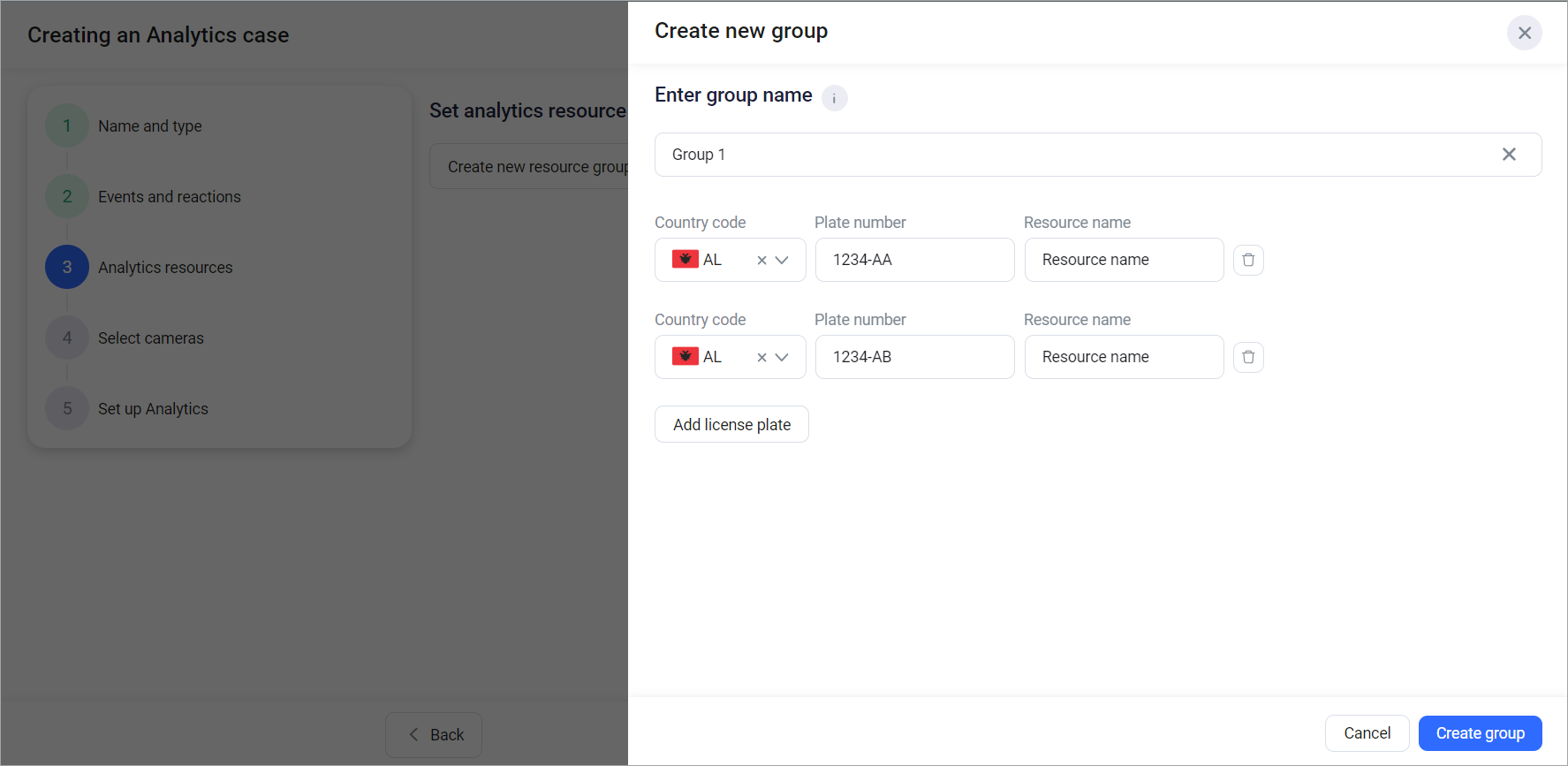

For the License plates analytics type:

You'll find that adding resources to groups involves a similar set of steps as described earlier.

If you close the new analytics case window or delete the created resource group while viewing the added resource groups, the created group will not be saved.
