Create a layout

You can create a layout in one of the following ways:

• On the Cameras tab > Layouts. See description below.

• From within the camera player when watching an individual camera or multiple cameras in a layout. Select the Layout button on the player panel (if the button is enabled) or select it via the More action button.

To create a layout from within the Layouts tab, select the New layout button. This opens the Parameters and Layout cameras tabs, where you can enter the necessary details.

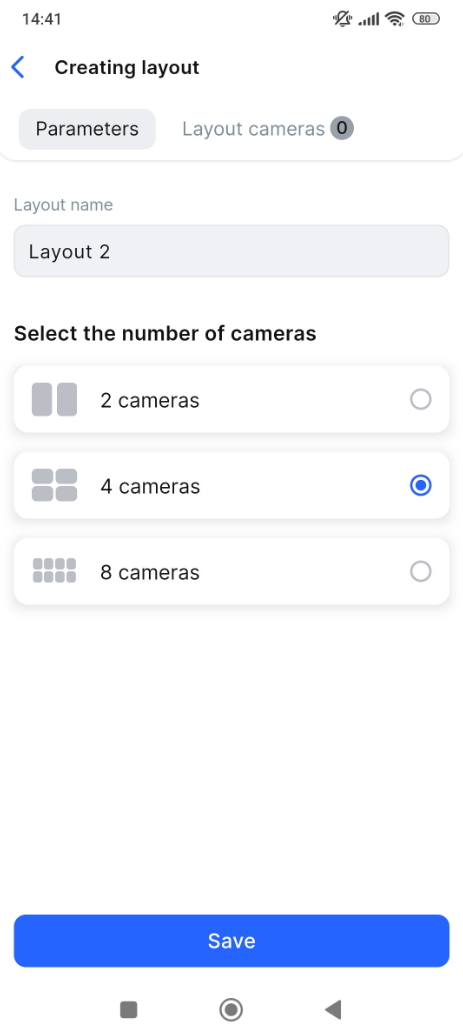

On the Parameters tab, complete the following details:

• Enter a name for a layout that should be unique.

• Select the number of cameras to be used in a layout – 2, 4, or 8.

• To complete creation of a layout without cameras, select Save. To add cameras to the layout, navigate to the Layout cameras tab.

On the Layout cameras tab, add cameras to the current layout.

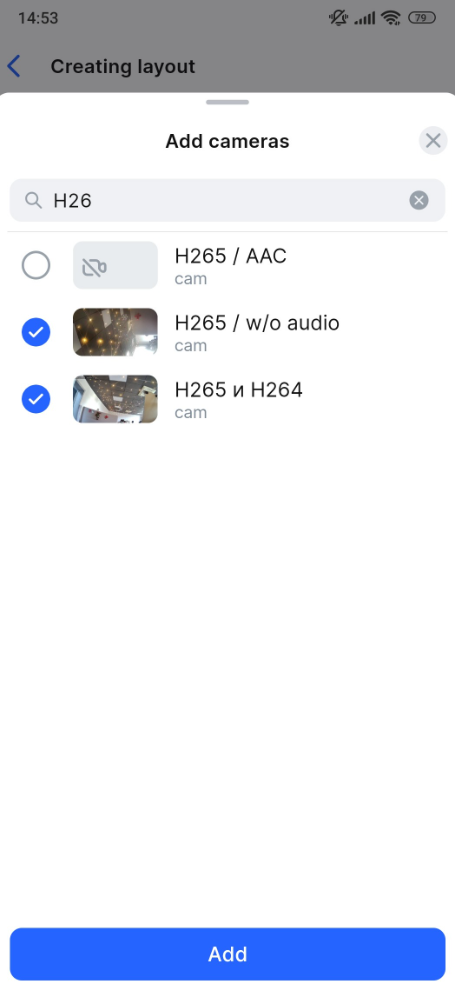

For this, select Add camera. This opens a list of available cameras to add to the layout. Select the checkboxes of relevant cameras and Add.

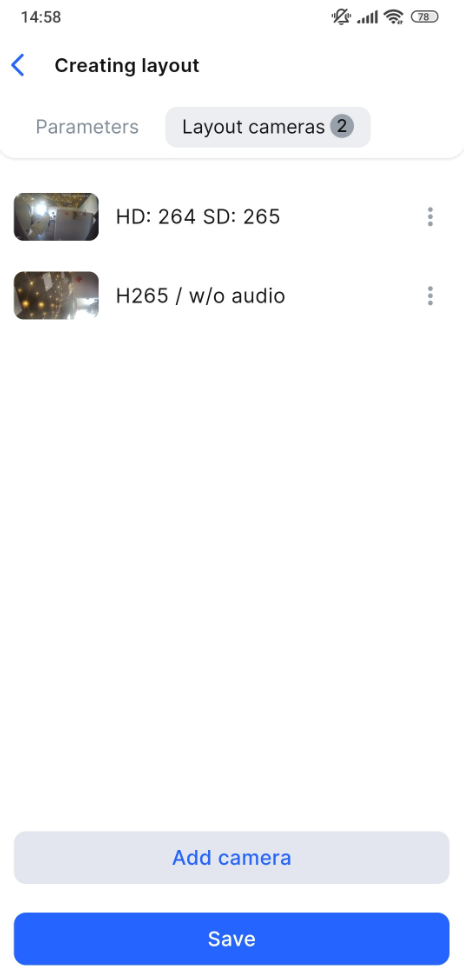

The added cameras will be listed on the Layout cameras tab.

To save the changes, select Save.

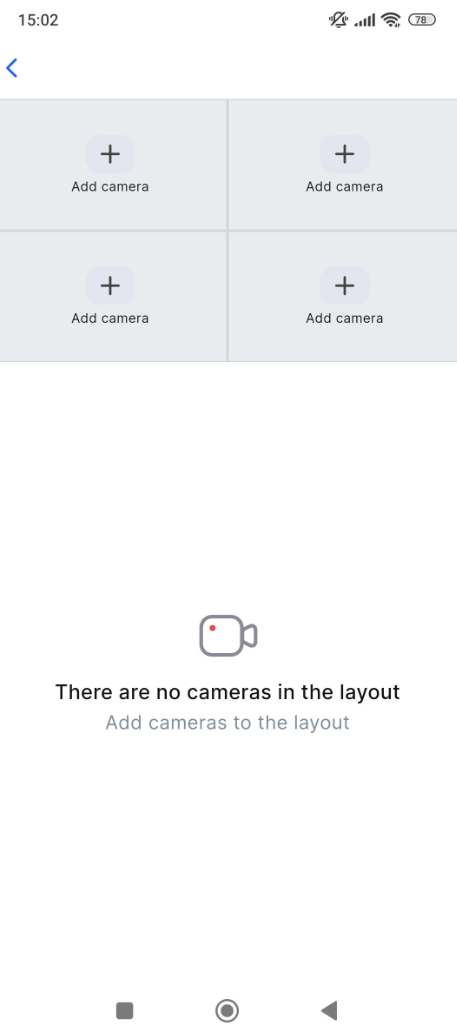

If you create a layout without adding any cameras, you'll be prompted to add cameras to this layout immediately afterward from within the following screen. Select Add camera in a relevant cell of the layout. From the opened list, select a camera, and Add. Repeat the action to add cameras to other cells.

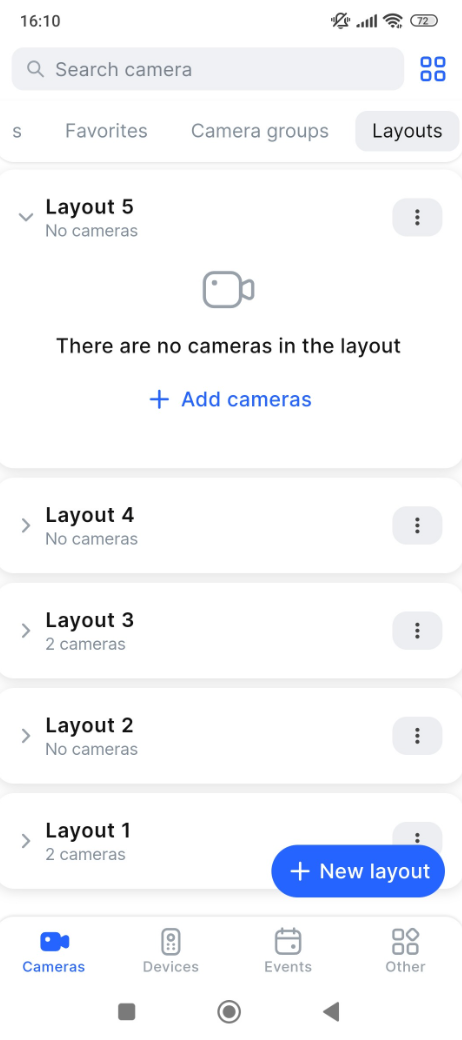

You can also add cameras to a layout without added cameras at any other time. For this, from the list of layouts, expand the layout details and select Add cameras.
