Archive/DVR in the Desktop client

In the Archive/DVR section, the user can view the archived records. The interface and the functionality of the section is practically identical to Live. The main difference is the functionality of the player.

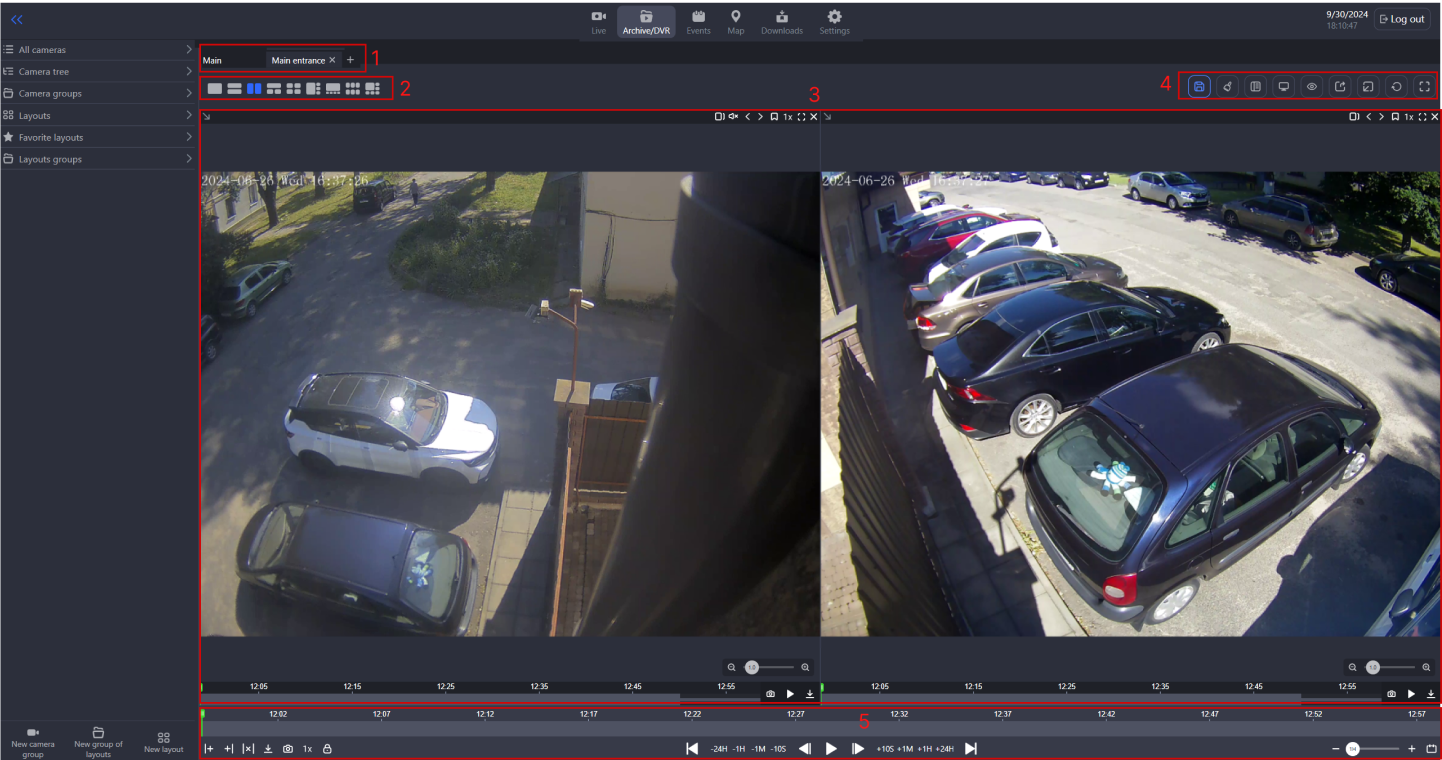

The work area includes:

1. Panel for switching between layouts – similar to Live mode.

2. A set of templates for the current layout – similar to Live mode.

3. Camera layout. The location and number of cameras depends on the selected template. Each camera has its own set of controls. The description is given below.

4. A set of tools for working with the current layout – similar to Live mode.

5. The common timeline for managing viewing time on all cameras simultaneously.

A description of adding and setting up layouts is given in the section List of layouts. Search, add, edit.

The duration of archive storage, as well as settings for the archive recording schedule, are performed in the system administrator web interface

When viewing and downloading the archive, it is worth considering that the camera could be added in a different time zone. See the UTC Standard section for details

Next:

• Layout panel. Archive/DVR

• Template set. Archive/DVR

• Cameras. Archive/DVR

• Toolbar. Archive/DVR

• General timeline. Archive/DVR
