Events and reactions. Web client user

The Analytics section enables you to work with events and reactions.

An event represents a pre-set instrument or detector within different analytics algorithms, created for executing particular functions.

A reaction is the system's response to an occurred event.

Group 4 (24).png

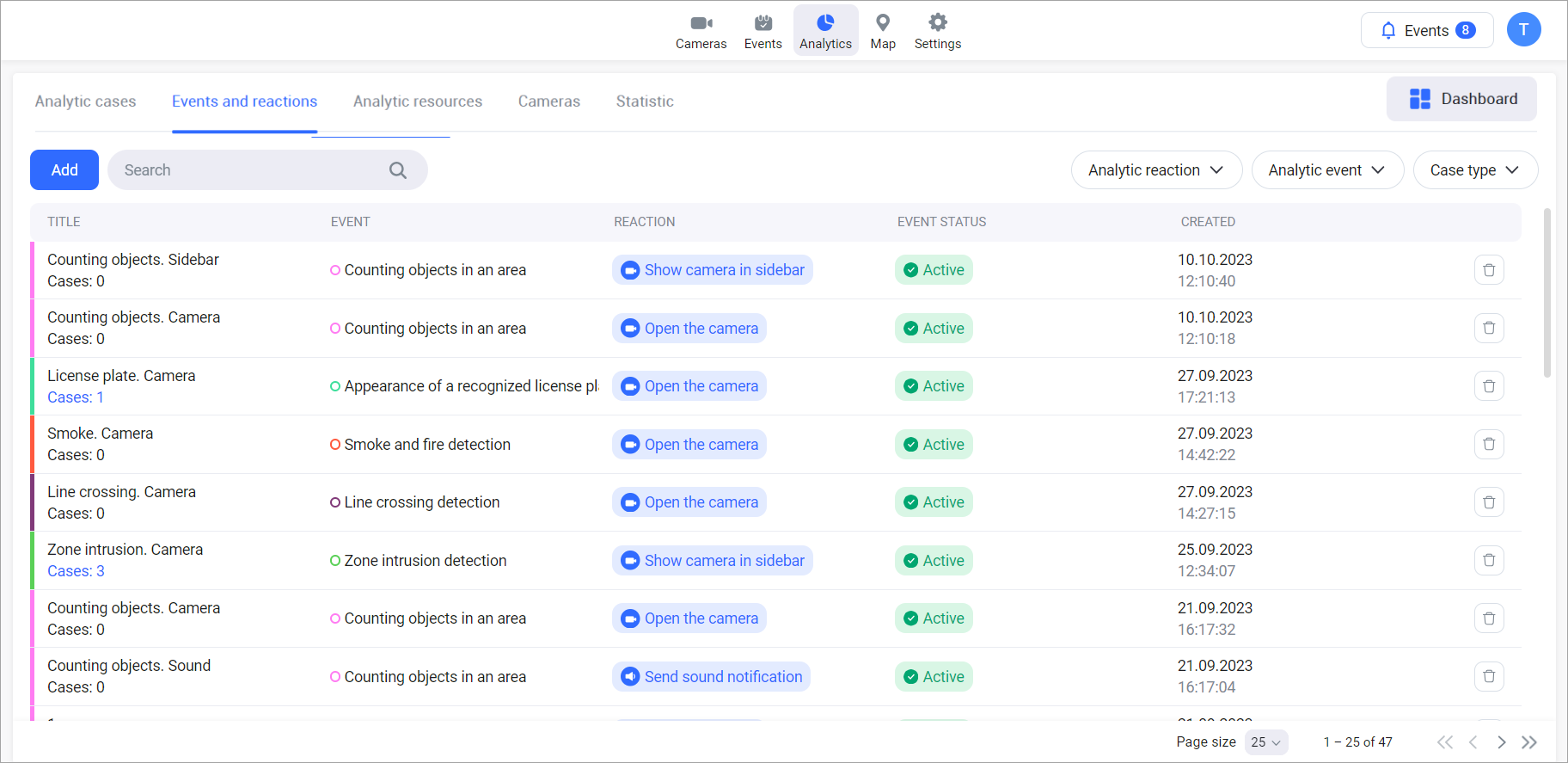

The Events and reactions tab

The following information is displayed on the tab:

  • A table with the set reactions to events:

    • A reaction name created by a user.

      • Below the name, the number of analytics cases in which this reaction is currently used is displayed. When you select Cases, a list of cases is displayed.

    • The event to which the reaction is configured.

    • The system name of the reaction.

    • The reaction status.

    • The date when the reaction was created.

    • The Delete button.

  • The Add button that creates a new reaction.

  • The Search field allows you to look up reactions based on their name.

  • Filters:

    • By event

    • By reaction

    • By analytic type

  • Display 15/25/50/100 entries per page.

Selecting a line, navigates you to edit the reaction. For details on how to add a reaction, see the the Add a new reaction section.
