The Switch matrix tab. Beward intercoms

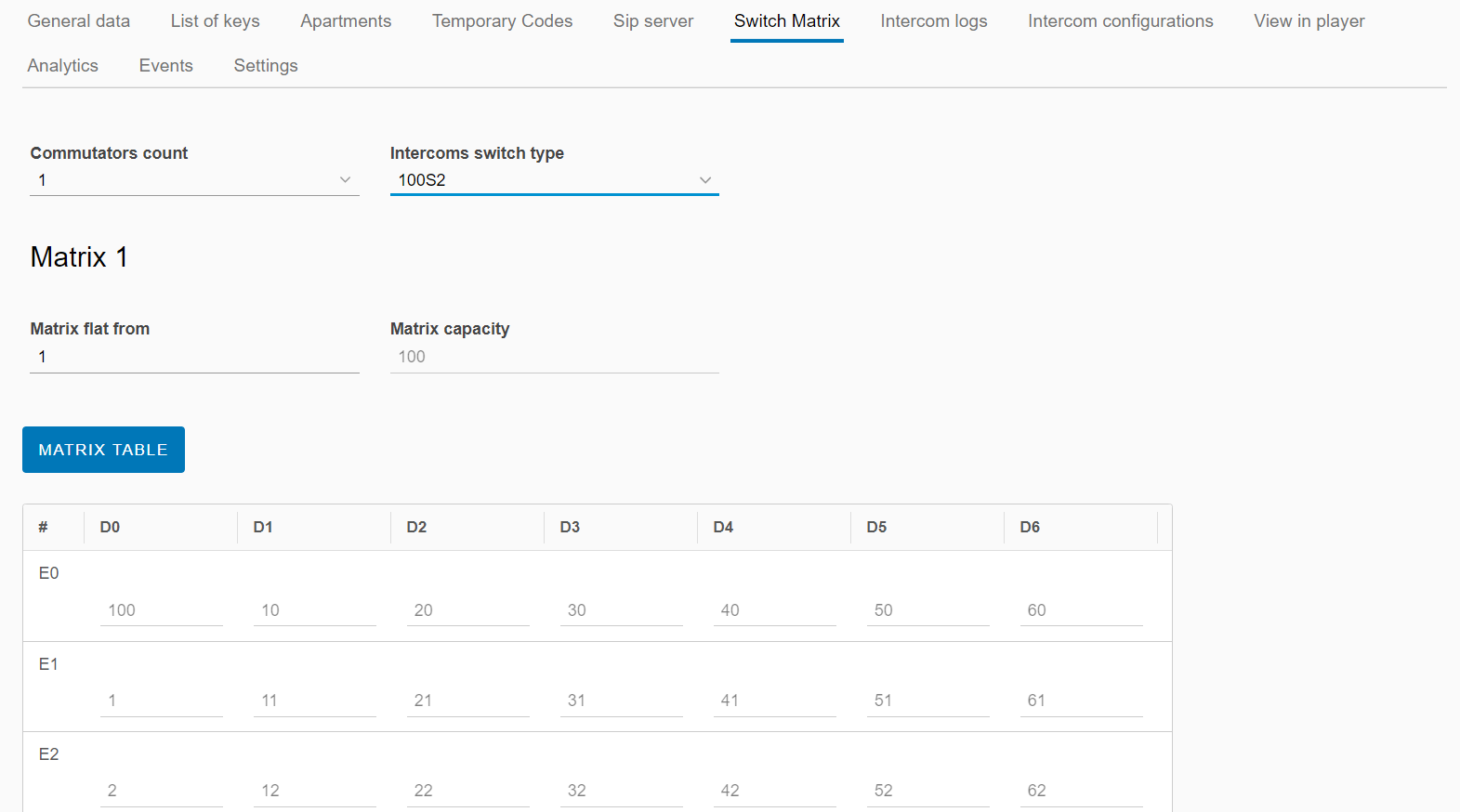

On the Switch matrix tab, you can configure the coordinate matrix-switch settings.

The tab is displayed when the Matrix-switching or Combined 1 connection scheme is selected on the General data tab.

For Beward intercoms, the matrix is filled in automatically and can’t be edited.

From the Commutators count drop-down lists, select a commutators count.

From the Intercoms switch type drop-down lists, select an intercoms switch type.

Select Save matrix to save the introduced settings.
