Layout templates. Live

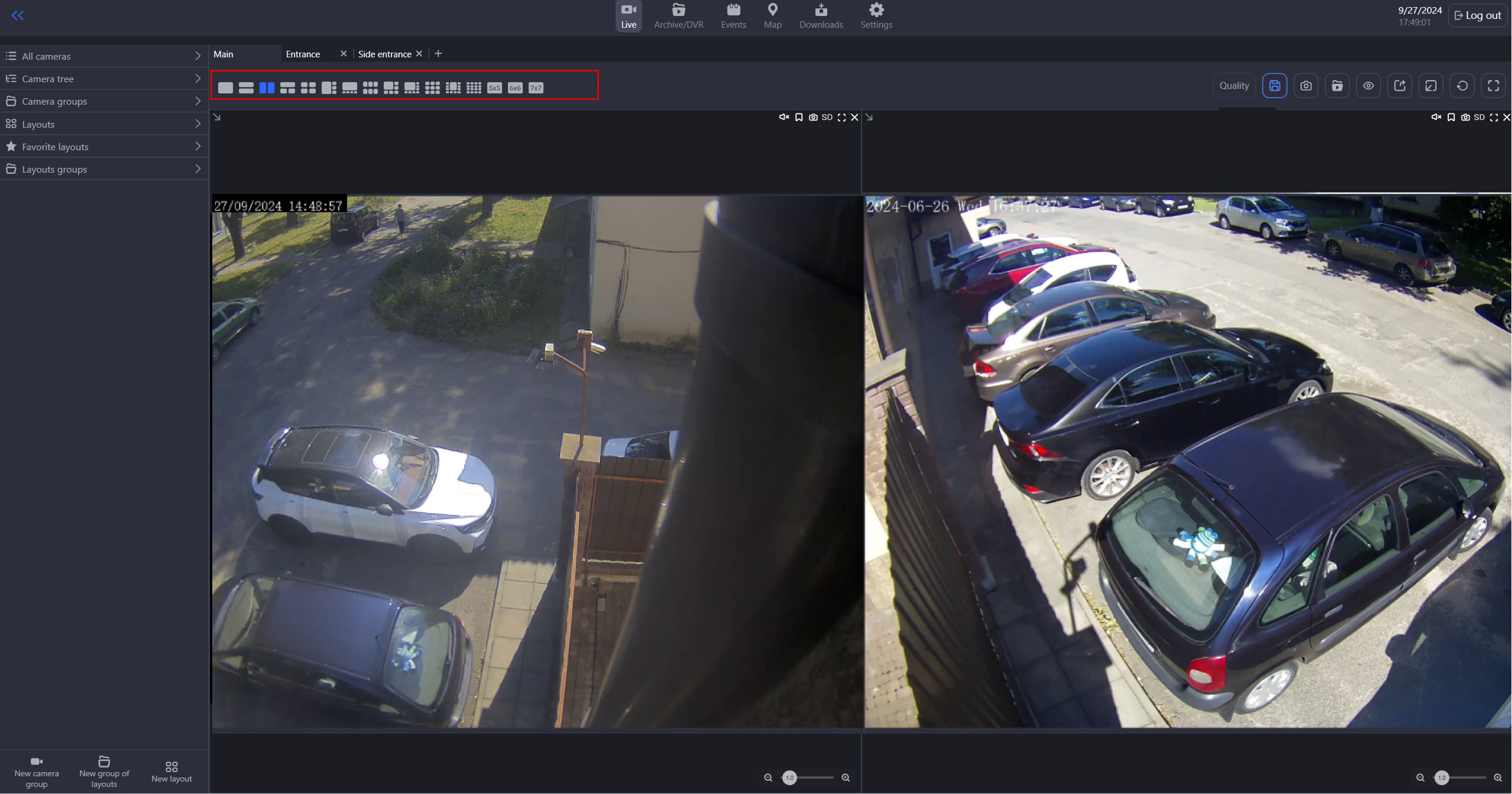

In Live mode, the following set of templates is available for each layout.
.png?inst-v=1aa15bba-1fed-4d60-b510-39e029bb8ff0)
The layout templates
A tooltip displaying the number of cameras in a template appears when you hover over it.
The currently selected templates are retained when you navigate to different layouts
When setting up layouts, you should take into account the limitation on the number of templates in the Archive/DVR section. In the program settings, the Show all archive layout templates settings affects the following way:
If the setting is enabled, templates containing up to 16 cameras will be available in the Archive/DVR section.
If the setting is disabled, templates with up to 6 cameras will be available.
The 5x5, 6x6, and 7x7 templates aren’t available for users in the web interface.
