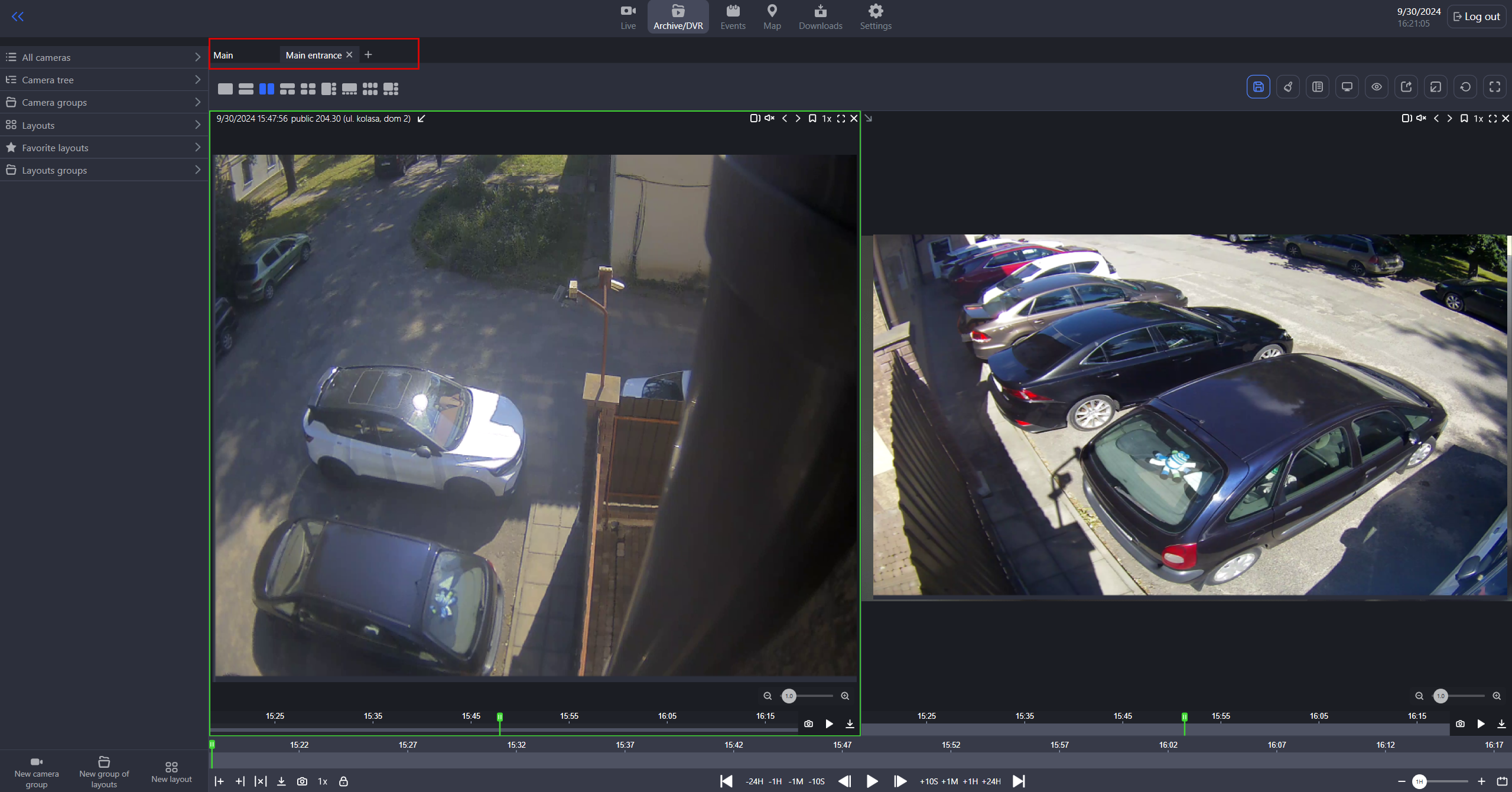

Layout upper panel. Archive/DVR

The layout panel enables you to switch between opened layouts from within the workspace of the desktop client.

Layouts that are open on another monitor or in a detached window won't appear in the layout panel.

To effectively use layouts, you can manage the settings from within the program settings:

• Select a language.

• Set limits to the number of open layouts.

• Manage automatic loading of layouts and detached windows on application launch.

• Manage automatic full-screen mode when opening a layout in a detached window or on another monitor.

• Prevent detached layouts from minimizing with the main workspace

• Prevent closed detached layouts from opening within the main workspace.

• Enter a path to save exported files to enable automatic downloads to that directory. If no path is specified, a directory selection dialog will appear each time a file is downloaded from the desktop application.

• Manage the display of all layout templates in Archive/DVR. When enabled, the user gets access to additional layout templates that contain up to 16 cameras.

For a comprehensive guide on how to create and set up layouts, navigate to the Layouts section.
