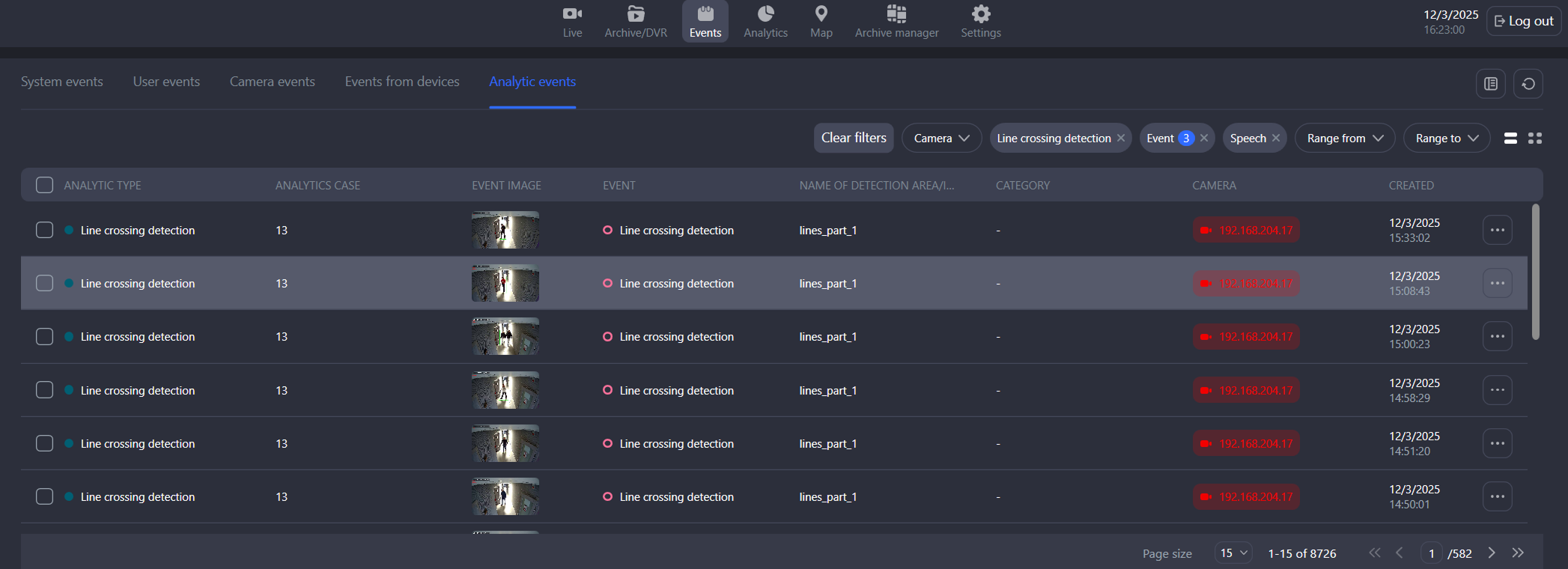

On the Analytics events tab, you can find Analytics events. Analytics events are system‑registered events that occur within Analytics cases added through the Desktop client and the Web interface.
.png?cb=cf2672f12c16819322b8026e69f7eed6)
The following details are available for each event on the tab:
-
A related Analytics type.
-
A case name.
-
An event image. Selecting the image opens it full screen. Users may engage with the image to utilize the zoom-in and zoom-out capability for detailed analysis. In certain analytics, an event image is a cropped image of the detected object. To view the full image, navigate to the details of the Analytics case.
-
An event name.
-
A detection area or intersection line whose crossing triggered an event detection.
-
An event category.
-
A camera name. Selecting the camera name opens the player with the playback of the detected event.
-
The date and time when an event occurred.
Play back an event in the player
To play back an individual event in the player, use one of the options:
-
Double‑click the event row with the left mouse button.
-
Select the horizontal ellipses icon of the event and Go to event.
As a result, the player launches with playback of the selected event. If the archive is unavailable, a message is shown to the user indicating that the archive isn’t available at this time.
Open events on a layout

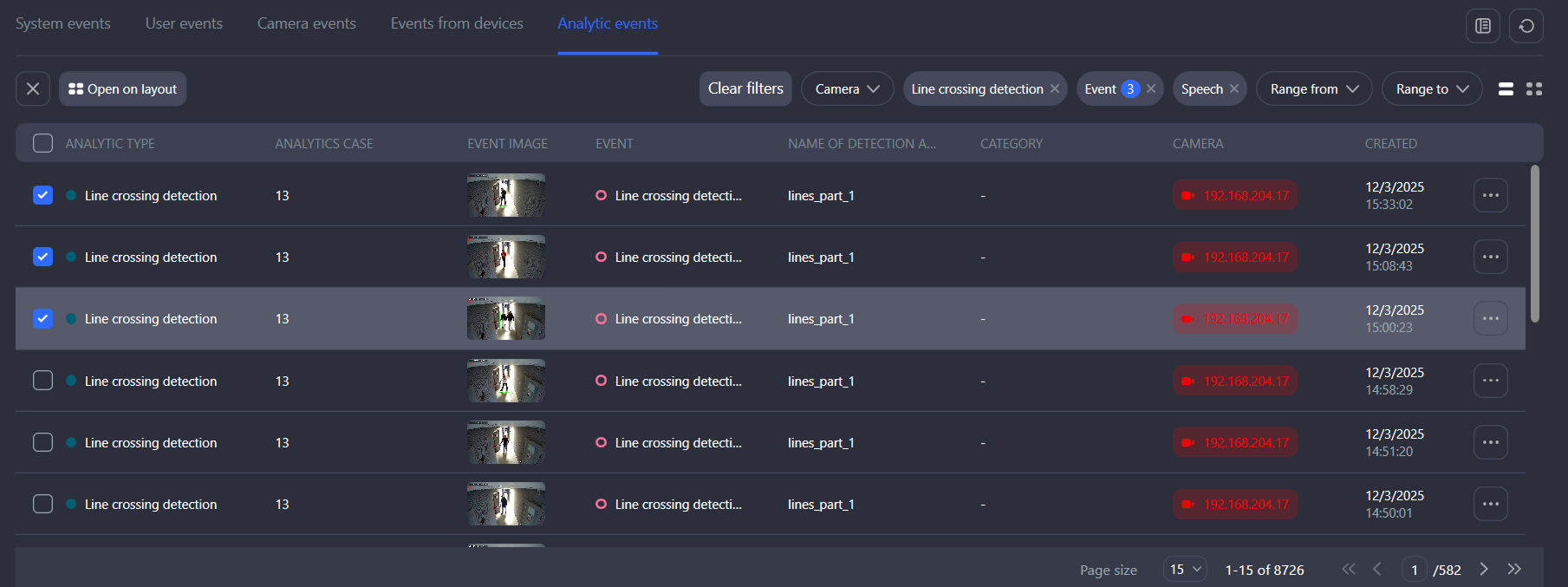

There is an option to simultaneously play back multiple events in the player from within a layout. To do this, select the checkboxes of the relevant events and Open on layout.
You can choose up to six events to open on a layout.
.png?cb=2a266cf06e7a99ae7f72411a88e2c8cd)
As a result, the system opens the selected events in an automatically generated layout in the Archive/DVR section
