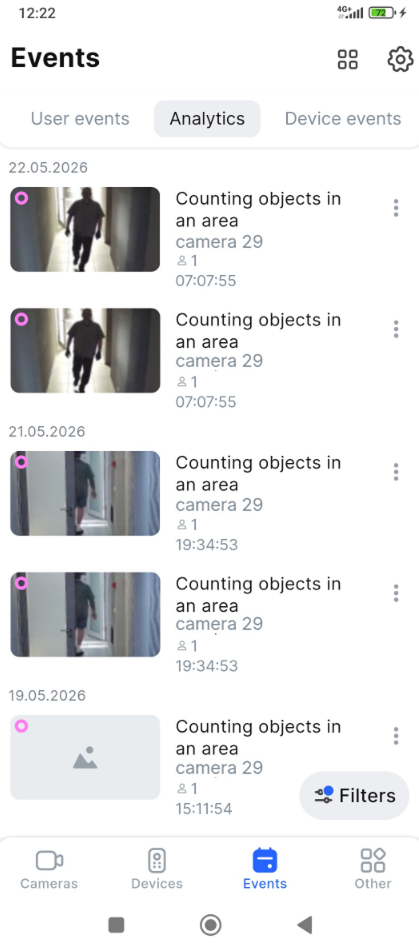

On the Analytics tab of the Events section, the mobile app user can view and manage the analytics events. These are the events that associated with configured analytics cases. Analytics cases can be set up by the user through either the web or desktop interface.

On the Analytics tab, you can find the following event management options:

Filter events
Access details and management options for a detected event
- Navigate to the player to play back the recorded event
- Manage an event screenshot
Set up analytics event notifications for both general alerts and specific cases. For details on how to manage the Analytics-triggered notifications, see the Set up Analytics-triggered push notifications page.

Each event contains the following details:

Type of Analytics the event is associated with.
Date and time when the event was detected.
Camera name.
Captured image of the detected event.
For the Container number recognition analytics type, a recognized container number is specified.
For the Face recognition analytics type – the percentage match between a captured image and the reference image; the reference image, and the image captured by the camera at the event.
For the License plate recognition analytics type – a recognized license plate, the reference license plate number, and the percentage match between the reference number and the recognized; if the license plate isn’t recognized – only the percentage match between the reference number.
The option to enable and disable push notifications on detected events for a specific analytics case that can be accessed via the context menu icon . For details on how to manage the Analytics-triggered notifications, see the Set up Analytics-triggered push notifications page.

Filter events

You can filter events on the Analytics tab in the following way:

Tap Filters.
On the opened Filters tab, set all relevant filters:

A filtering period: Today, Yesterday, Week, 30 days, or tap Period to customize with a specific date range.
Under Analytics events filter, tap Add events to additionally set the event filters. On the opened tab, select events to filter. Once the filters are selected, tap Select. To cancel this filter, tap Clean.
Under Cameras, tap Add cameras to specify the exact cameras to filter the events. From the opened list, choose cameras and tap Add. To cancel this filter, tap Clean.

Once filters are set, tap Apply filters. Tapping Reset at the top left will clean all the set filters.

Access details and management options for a detected event

Locate the detected event in the list. Tap the event to open the bottom sheet and access its management options. The bottom sheet features the following event details: the name of the analytics case, camera name, camera address, the Watch in player option, and the horizontal ellispis icon to save and manage the screenshot.

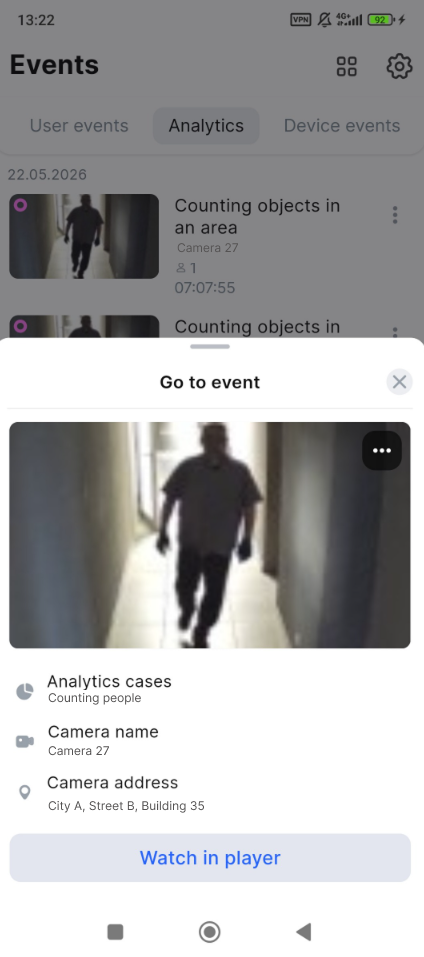

image 89 (2).png — Event details and management options

Play back the recorded event

You can open the event in the camera player if the relevant video footage segment is available in the archive.

To view an event in the player, follow the steps:

In the events list, tap the relevant event.
On the opened tab, select Watch in player.
As a result, you navigate to the camera player in Archive mode directly to the event recording. For details on how to view archive footage, see this View camera footage in Archive mode article. If the relevant video footage segment is no longer available in the archive, you’ll see a revenant notification. In this case, you will remain on the Analytics tab.

For intercom cameras with archive viewing restrictions set by the administrator, archive access is available as follows:

For an answered call – 15 seconds before a call, during a call, and 30 seconds after the call is ended.
For a call that wasn’t accepted – 15 seconds before a call and 30 seconds after.

For details, see the View and edit an intercom section > the General data tab of the Administrator guide.

To return from the player back to the Analytics tab, use the return icon at the top left of the player.

You can also access event’s video in the player via the camera events feed. For details, see the Camera events feed article.

Manage an event screenshot

To manage an event screenshot, on the bottom sheet, select the horizontal ellipsis icon image 94 (3).png on the image. On the tab that opens, select an option to manage the screenshot:

Save to my screenshots. The screenshot will be automatically saved in the app. You can find the screenshots saved in this way on the Other tab > My screenshots and videos.
Save to gallery. The screenshot is automatically saved to the mobile device gallery.
Copy to clipboard. The screenshot is automatically copied to your clipboard, making it easy to paste it into other apps or messages without saving it to your device.
Share. By using this feature, you will send the screenshot directly to messaging apps, email, or cloud storage without saving it to your device gallery.
To cancel saving a screenshot, close the tab or select Cancel.

Enable or disable notifications for a specific Analytics case

You can manage push notification settings for an analytics case directly from the context menu of a detected event.

For this, select the icon to call out the context menu. From the menu, select Enable notifications on case events. Select Disable notifications on case events if they were enabled.
