The Desktop app provides an option to quickly add an Analytics case to cameras. Unlike the standard flow in the Analytics tab, this approach doesn’t require specifying detection areas or configuring parameters, as they are set by default. The default settings are listed below. The only exception is Line crossing detection, which must be additionally manually configured.
Cases for the following Analytics types can only be created and edited in the Web app. Once created in the Web app, they are automatically synchronized with the Desktop app: the cases appear in the lists, and their detected events are displayed in the Events section along with other Analytics events. However, users cannot view case details or edit these cases from within the Desktop app.
-
Visitor counting
-
Face recognition
-
License plate recognition
-
Container number recognition
You can quickly add a case in one of the following ways.
-

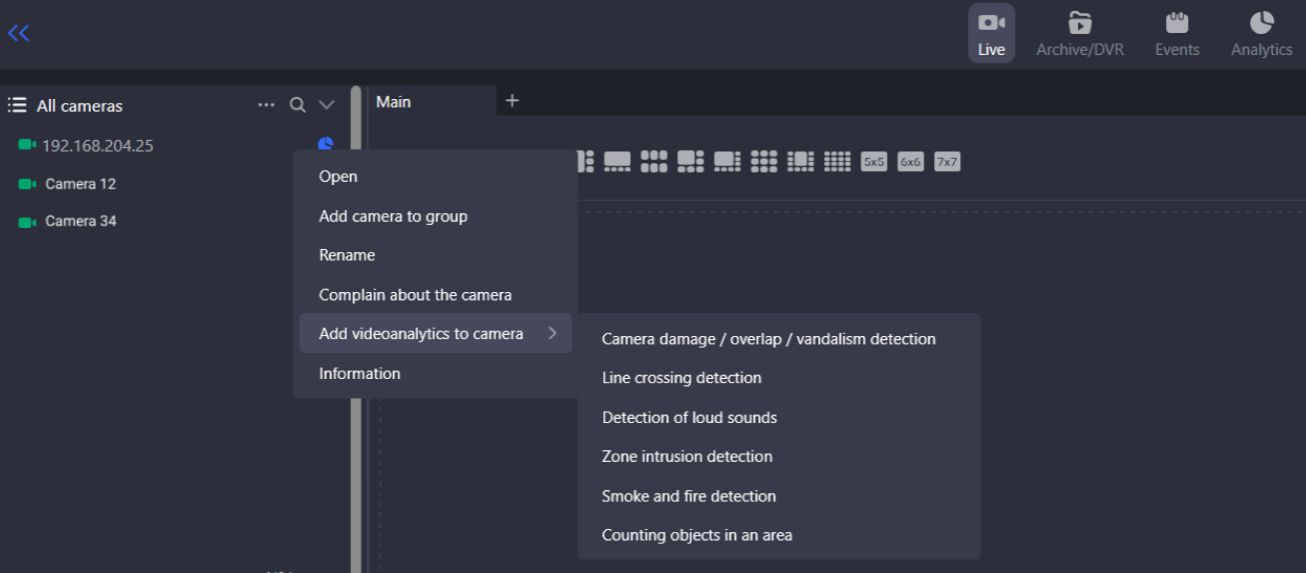

From All cameras, select a camera to add a case and call out the actions menu. Next, Add videoanalytics to camera and choose a relevant Analytics type for the case.
.png?cb=fb3c150e538bc7b7864d730d84ebb4c9)
-

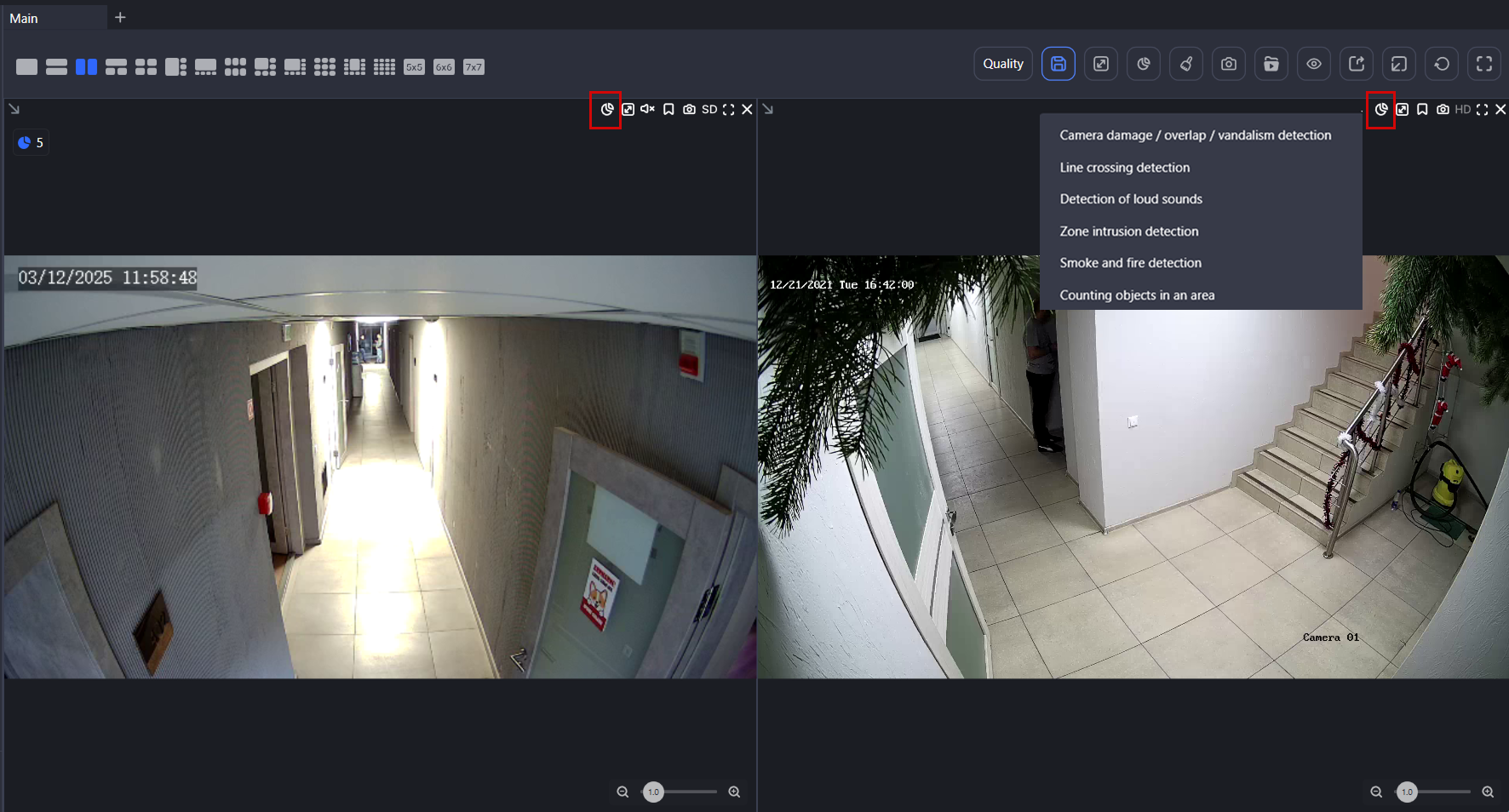

In a layout in Live mode. Here, you can add Analytics cases to individual cameras by selecting the corresponding Add videoanalytics to camera icon. Next, choose a relevant Analytics type for the case from the list.
.png?cb=866a24d320403d438030221a4f06942f)
-

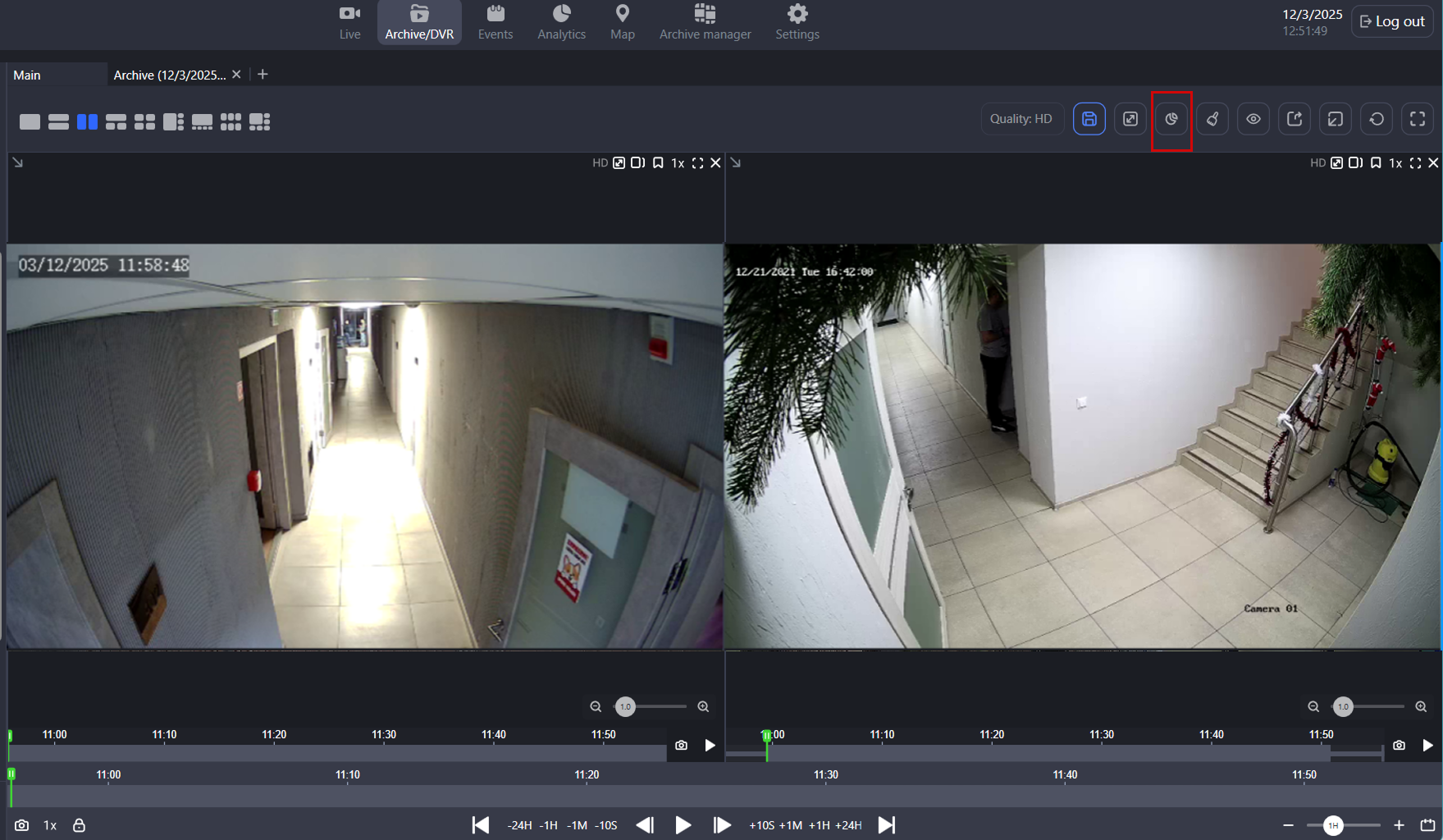

In a layout in Live and Archive modes. Bulk Analytics deployment to all cameras in a layout with a designated Add videoanalytics to camera icon located at the top toolbar.
.png?cb=5675166d1218f70852b07ef3ede38a60)
-
In the Analytics type selection list, only types with available licenses are shown to the user. To verify license availability, go to the Analytics > Licenses tab.
-
License limit reached. An Analytics case cannot be created when the number of cameras on the layout exceeds your available licenses.
Upon selection of an Analytics type (applicable to all except Line crossing detection), the system initiates automatic case creation and subsequently issues a confirmation of successful action.
.png?cb=f8da0e886f8bafed5e637dbac90e714f)

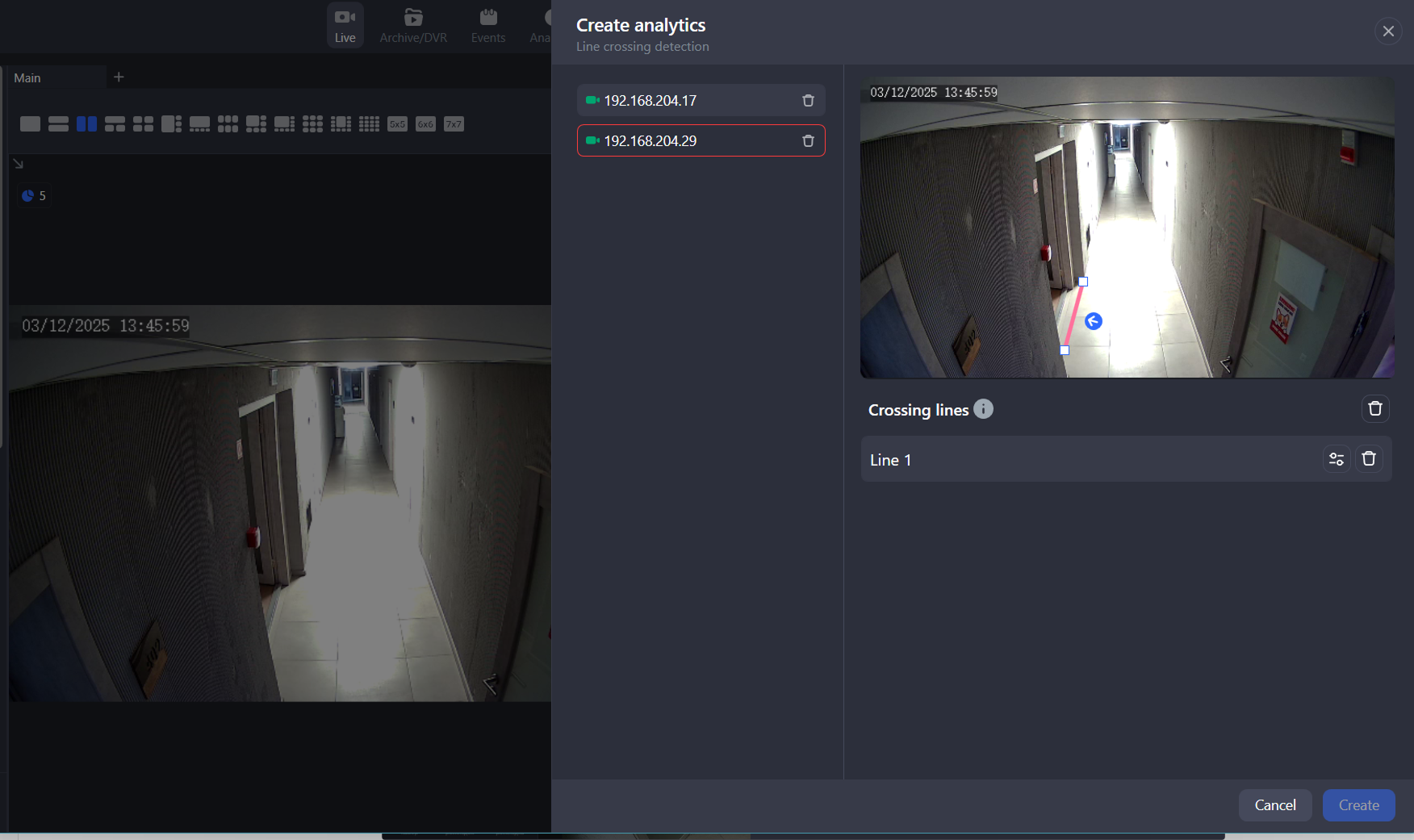

Line crossing detection. When this type is selected for the case, you need to manually modify the virtual lines for the case. When the case is simultaneously applicable to all cameras in the layout, ensure that the lines are adjusted for each camera separately. Once all the settings are adjusted, complete the case creation with Create.
.png?cb=7bc2ddc5abc0c90bb53f35de0a8a7c93)
Default settings
Detection area. For Analytics types that require specifying a detection area on the camera image, the default detection area is the entire image.
Reaction. The default reaction for all cases is set to receive events with No reaction.
Other default values:
|
Analytics type |
Parameter |
Value |
|---|---|---|
|
People counting in an area |
Number of people in the detection area |
1 |
|
Smoke and fire detection |
Sensitivity |
50 |
|
Zone intrusion detection |
Sensitivity |
50 |
|
Smoke and fire detection |
Sensitivity |
70 |
