Switch matrix tab in the intercom card

On the Switch matrix tab, you can configure the matrix switcher settings.

The tab is displayed when the Matrix-switching or Combined 1 connection scheme is selected on the General data tab.

While specific management features are vendor-dependent, this documentation section focuses on the base setup and universal functions common to all supported hardware from within the Switch matrix tab.

Compatible vendors. We continuously update our list of supported hardware. For the most current list of compatible intercom vendors, please reach out via our Contact Page.

Vendor-specific documentation for advanced integration and management is available upon request via our Contact Page.

Configure the matrix switcher settings

On the Switch matrix tab, you can configure the coordinate matrix-switch settings.

For certain intercoms, the matrix is filled in automatically and can’t be edited.

From the Intercoms switch type drop-down, select a relevant switch. Intercoms may support different apartment matrix configurations:

kkm-100s2 – 1 matrix.
kkm-105 – 5 matrices.
kkm-108 – 8 matrices.
kmg-100 – 1 matrix.
km100-7.1 – 1 matrix.
km100-7.3 – 3 matrices.
km100-7.5 – 5 matrices.

Once the switch type is selected, the settings for each matrix and the corresponding set of apartment matrices are displayed.

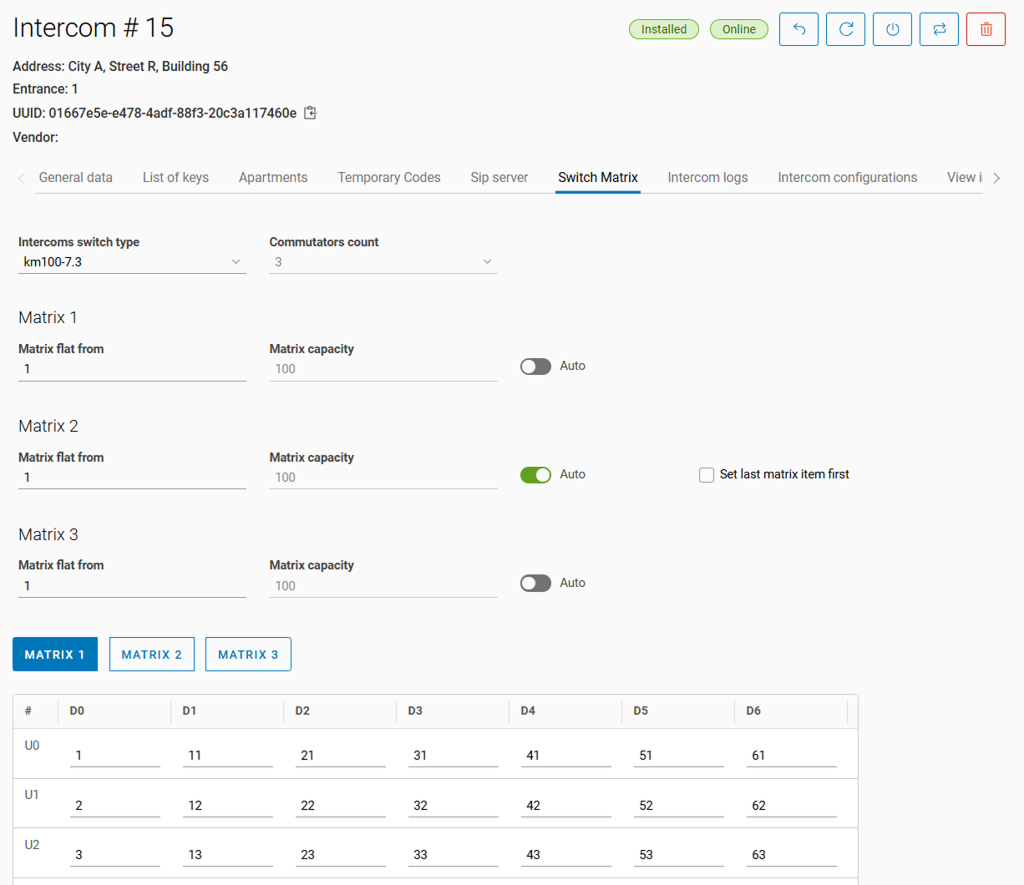

Group 31 (1).png — An example of matrix settings

Manage the following settings for each matrix:

Matrix flat from – an apartment number from which the matrix completions start.
Matrix capacity – can’t be edited. The maximum capacity is 100 apartments.
Auto – automatic completion of the matrix.
Set the last matrix item as the first. Is available only when the Auto setting is enabled.

Certain intercoms allow editing of the auto‑generated matrix configuration.
If you have fewer apartments in a matrix than you have listed on the Apartments tab, the system will enable calls for the apartments at the top of your list on the Apartments tab.

Once changes are introduced, select Save matrix.

Each apartment number within an intercom system must be unique across all matrices.
