Bridge hardware design

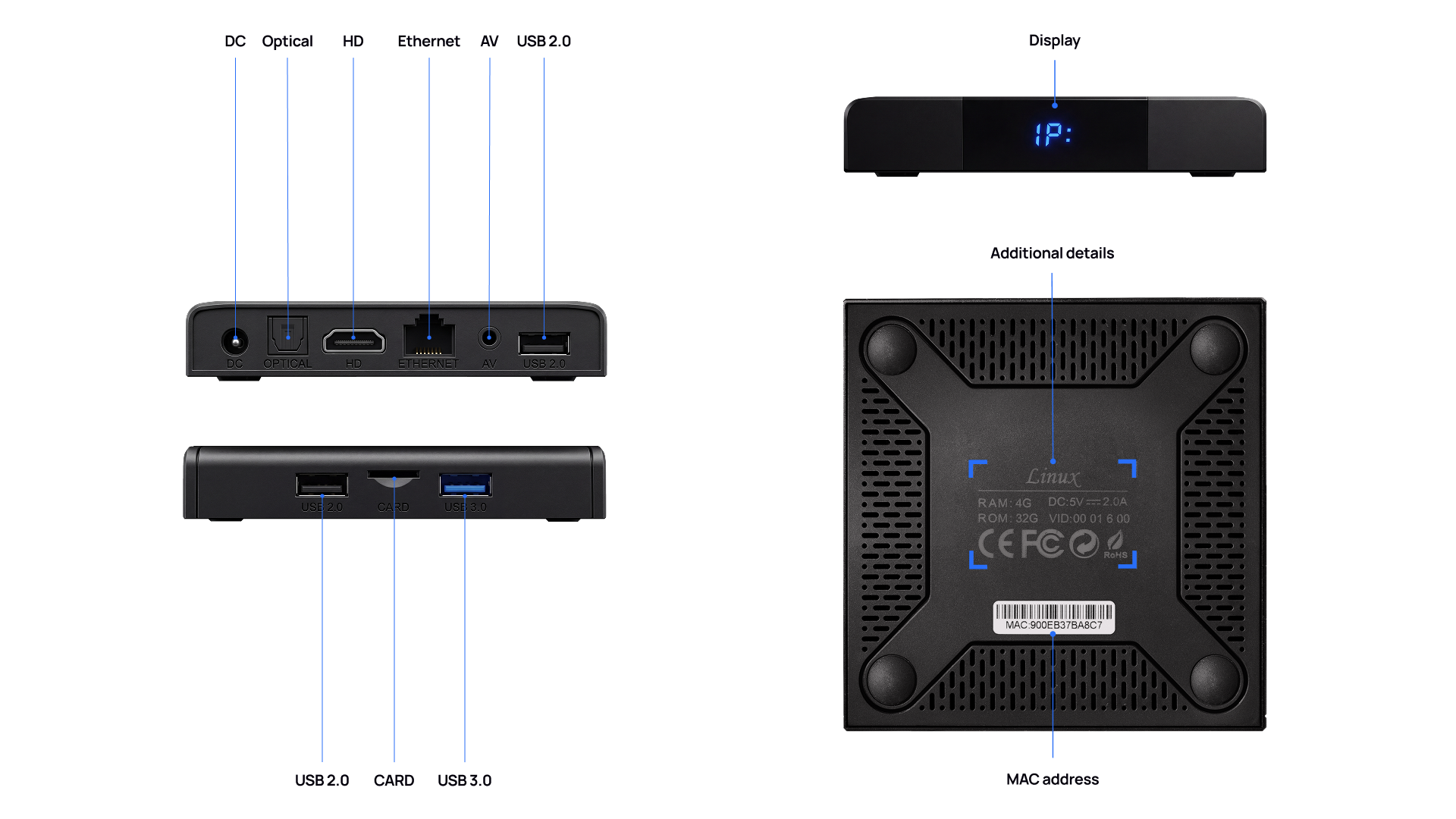

The figure shows a typical Bridge device layout. Component placement and port availability may vary depending on the device model.
Connection panel
-
DC – power connector for the included power adapter. Provides power to the device.
-
OPTICAL* – optical output. Not used in the current Bridge device version.
-
HDMI – universal digital connector for HDMI devices.
-
ETHERNET – network port used to connect the device to a local network or the internet through a wired connection.
-
AV / Reset – recessed button used to reset the Bridge device to factory settings. For detailed reset instructions, see the Reset Bridge to factory settings page.
-
USB 2.0 – universal interface ports for connecting external peripheral devices, including a keyboard and mouse.
-
CARD – SD card slot. For details about video recording, see the Video archive recording: cloud and local storage documentation page.
-
USB 3.0* – high-speed port. Not used in the current Bridge device version.
-
Digital display – shows the device IP address when connected to the network.
Device specifications
|
Parameter |
Value |
|---|---|
|
Supported devices |
Up to 8 IP video cameras |
|
Supported IP camera resolutions |
2 MP, 4 MP, 5 MP, 8 MP |
|
Supported video codecs |
H.265, H.264 |
|
Supported audio codecs |
G.711 μ-law, G.711 A-law, AAC |
|
IP camera connection protocols |
RTSP, ONVIF |
|
Network protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, NTP, IPv4, SSH, TLS 1.3 |
|
ONVIF event support for built-in IP camera analytics |
Motion detection, alarm input, alarm output |
|
PTZ support |
Supported for cameras connected over ONVIF, if the camera provides PTZ functionality |
|
Automatic camera discovery on the network |
Yes |
|
Wired network interface |
1 RJ-45 10/100/1000 Mbps Ethernet interface |
|
External interfaces |
USB interface: 2 × USB 2.0, 1 × USB 3.0 HDMI: 1-channel HDMI microSD Digital display AV / Reset: used to restore factory settings |
|
Operating system |
Ubuntu 22.04 (kernel 5.15) |
|
RAM |
4 GB |
|
ROM |
32 GB |
|
General specifications |
Power supply: 5 V DC / 2 A Operating temperature: 0°C to +45°C Enclosure material: plastic Dimensions (enclosure): 100 × 100 × 20 mm Power adapter: 220 V AC / 5 V DC |
