Camera (Agent) CAX-DT01BM-2PS-28

CAX-DT01BM-2PS-28

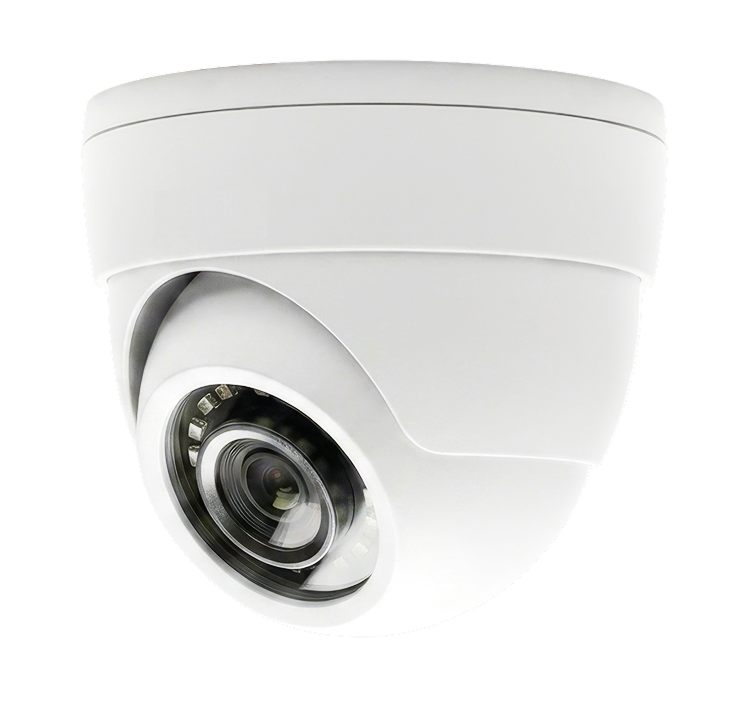

2 MP metal mini-dome IP camera with fixed lens and PoE support

Key features

  • 2-megapixel progressive-scan CMOS sensor / 2 MP video stream (1920×1080) at 30 fps

  • Fixed 2.8 mm / 3.6 mm lens

  • 18 SMD IR LEDs, IR illumination range up to 25 m

  • Power supply: PoE / DC 12 V

  • Supports DWDR, 3D DNR, AGC, MGC, AWB, and ROI

  • IP67 ingress protection

  • Intelligent detection:

    • Face detection

    • Human detection

    • Vehicle detection

    • Non-motor vehicle detection

    • Intelligent motion detection

    • Line-crossing detection

    • Intrusion detection

    • Abnormal audio detection

    • Pet detection

    • Fire and smoke detection
Group 2131328676.png

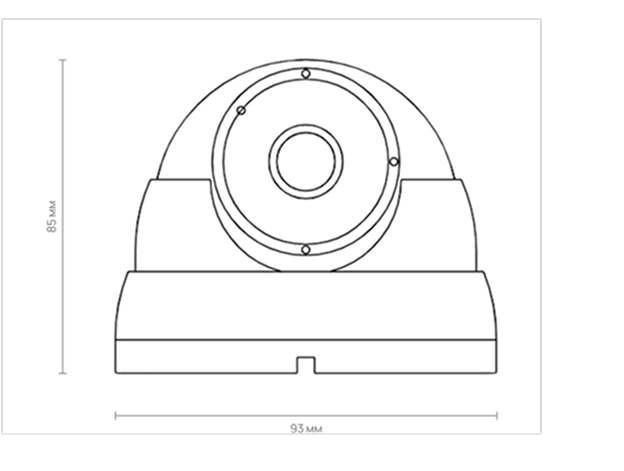

Overall dimensions: 85 mm × 93 mm

image 70 (9).png
Technical specifications for CAX-DT01BM-2PS-28

Camera

SoC / image sensor

SSC377 + SC231AH

Image sensor

1/3" 2 MP progressive-scan CMOS

Effective pixels

3 MP (2304 × 1280) / 2 MP (1920 × 1080)

Minimum illumination

0.01 lux @ F1.8 (AGC on), 0 lux with IR illumination

Shutter speed

1/2 s to 1/50,000 s

Lens

Fixed, 2.8 mm / 3.6 mm

Day/night

IR-cut filter: auto / manual / scheduled switching

DNR

3D digital noise reduction

WDR

Hardware WDR, 120 dB

Compression standard


Video codec

H.265+

H.264+

H.265

H.264

MJPEG

Data rate

Bitrate:

  • Main stream: 256–8000 Kbps

  • Sub stream: 50–1000 Kbps



Maximum resolution

3 MP (2304 × 1280)

Frame rate

30 fps at 3 MP / 2 MP / 960p / 720p

Main stream

30 fps at 3 MP (2304 × 1280)

30 fps at 2 MP (1920 × 1080)

30 fps at 960p (1280 × 960)

30 fps at 720p (1280 × 720)

Sub stream

30 fps at D1 (704 × 576)

30 fps at VGA (640 × 480)

30 fps at HVGA (640 × 360)

30 fps at CIF (352 × 288)

Image functions

DWDR, 3D DNR, AGC, MGC, AWB, ROI, motion detection, privacy masking

Image settings

Mirror, saturation, brightness, sharpness and contrast adjustment, exposure, DWDR, shutter, aperture, LDC, etc.

Network

Protocols

TCP/IP, UDP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP; SNMP v1/v2/v3, IPv4/v6; Bonjour; ICMP, IGMP, QoS, SSL/TLS

Compatibility

HTTP CGI / ONVIF / WebRTC

Proprietary protocols

  • Proprietary Hikvision, Dahua, Uniview, and XM protocols

  • Plug-and-play compatibility with the specified NVRs and CMS platforms

  • AI functions can operate with Uniview NVRs and CMS platforms

Intelligent detection

  • Face detection

  • Human detection

  • Vehicle detection

  • Non-motor vehicle detection

  • Intelligent motion detection

  • Line-crossing detection

  • Intrusion detection

  • Abnormal audio detection

  • Pet detection

  • Fire and smoke detection

Interface


Network interface

RJ-45 LAN port

PoE

Yes, integrated

General

Color

White

Power supply

PoE

DC 12 V

Operating humidity

10%–90%

Operating temperature

-40°C to +60°C

Power consumption

Max. 6 W

Dimensions

93 mm × 85 mm

Weight

Net weight: 360 g; gross weight: 460 g

Ingress protection

Metal housing; IP67 water resistance; suitable for indoor and outdoor installation

Accessories

Printed user manual, mounting kit
