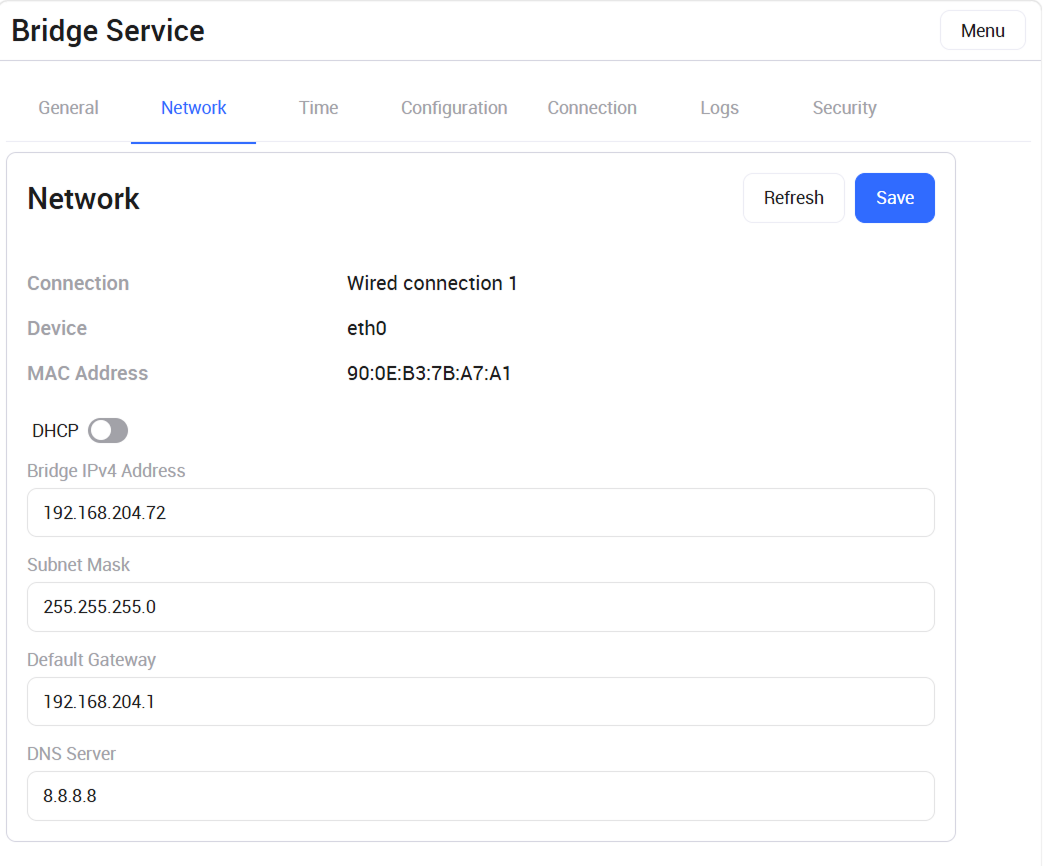

The Network section allows users to configure the Bridge device network connection settings. Available configuration options depend on the connection method.
The user can select automatic or manual network configuration.
Network configuration methods
-
Automatic configuration (DHCP) – DHCP is enabled on the device by default. With this method, all network parameters (IPv4 address, subnet mask, gateway, and DNS server) are assigned and filled in automatically.
-
Static IP address – disable automatic address assignment by switching DHCP to Off. Then enter the network parameters manually: IPv4 address, subnet mask, gateway, and DNS server. Contact the network administrator to get the required values.
Control buttons
-
Save – applies the updated settings.
-
Refresh – updates the data displayed on the page.
