Web interface: Access and Authorization

Connecting to the Bridge device web interface

You can connect to the Bridge device management web interface in one of the following ways:

• Direct connection (HDMI) – connect the Bridge device to a monitor using an HDMI cable. The monitor displays the Bridge web interface sign-in page.

• Remote connection (Web) – connect to the device over the network using a web browser. The Bridge device must be connected to the local network.

To connect to the web interface:

1. Find the IP address on the Bridge device display. Save this address because you need it in the next step. For more information about where the IP address appears, see the Bridge Technical specifications page.

2. Enter the IP address and port 9665 in the web browser address bar.

Example:

http://192.168.1.100:9665

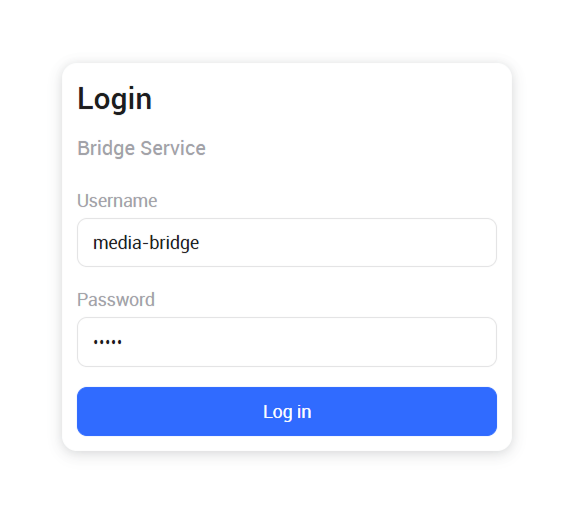

The browser displays the Bridge web interface Login page.

Sign in

To sign in to the web interface:

Use the following default credentials:

• Username: media-bridge

• Password: admin

You can change the password after signing in on the Security tab.

Select Sign in.
