Drive-in zone

The platform administrator manages Access points in the Administrator cabinet under Platform tree > Final location > Access control. The administrator creates an Access point and assigns one of the following types: Entrance, Drive-in, Defined (Fixed), or Universal. Based on the selected type, the platform indicates which devices and how many devices can be connected and combines them into a single access control system. Once devices are assigned to an access point, they operate as a unified system, while all management and configuration remain within the Access point. A single location can include any number of access points of different types.

For detailed instructions on creating and managing an access point, see the following administrator documentation: Administrator guide. Access point and Access control.

The Drive-in zone is intended to provide vehicle access through gates, barriers, and other entrance structures.

Allowed devices and quantity:

• 1 device of the Actuator type

• 1 BLE controller

Limitations: no more than one device of each specified type can be connected.

For detailed information about supported devices, see the Supported devices. Access point section of the documentation.

Example:

• Vehicle barrier for controlled access to a property

• Vehicle access gate to a property

Drive-in zone use case

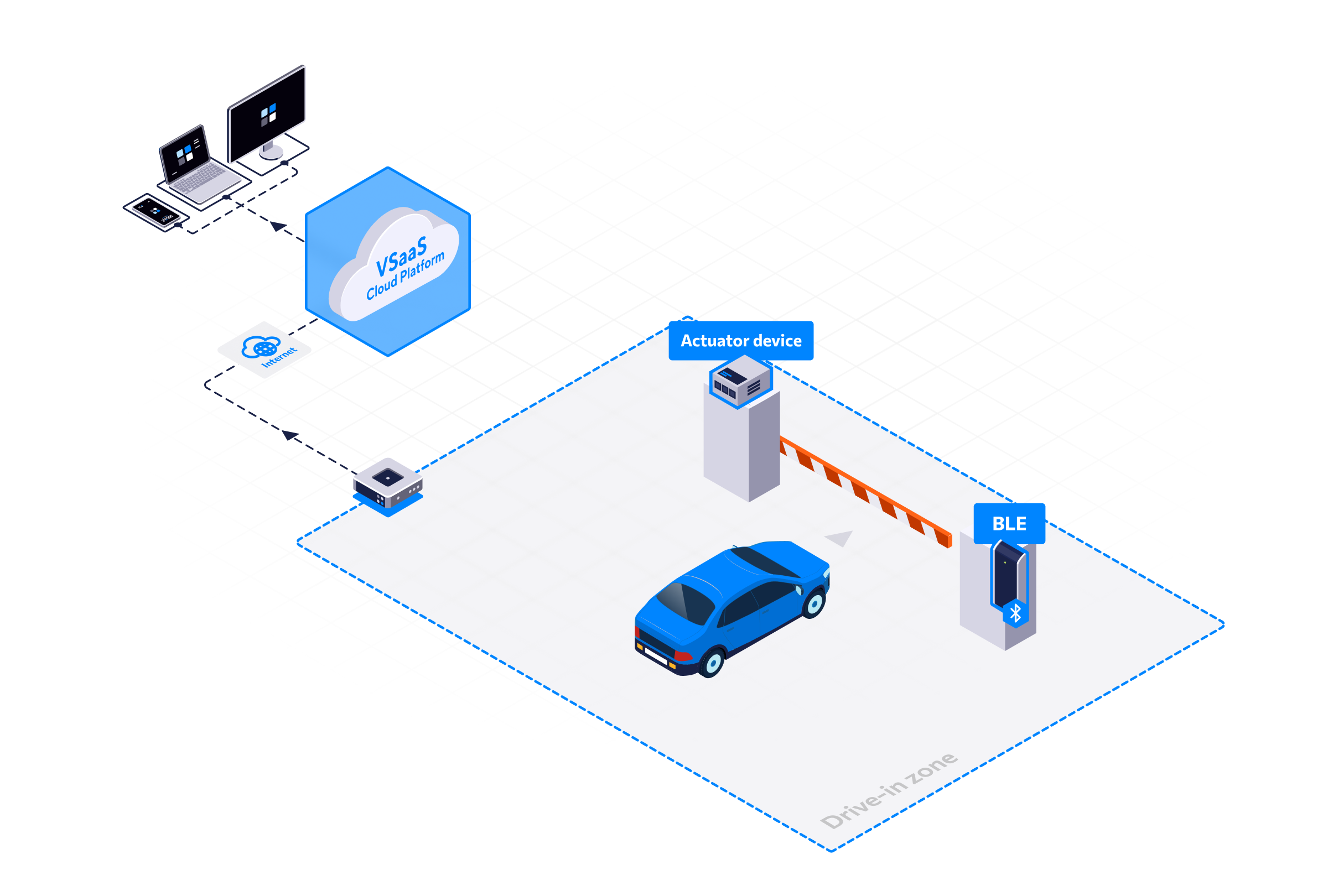

A secure parking area with automated vehicle access. To provide drivers with fast and convenient access, the administrator creates a Drive-in access point named “Main entrance.” The access point combines an actuator device, such as a barrier controller, and a BLE controller that detects signals from smartphones.

• For the administrator: the access point brings together everything associated with the entrance, including the barrier operating schedule, event monitoring, connected devices, settings, and device assignments to users. For detailed instructions on creating and managing an access point, see the Administrator guide. Access point and Access control documentation.

• For a person entering the property: the process is simple and automated. As the vehicle approaches the gate, the system controller automatically identifies the driver smartphone through a Bluetooth signal, verifies access rights, and sends a command to open the barrier. For more information about managing access from a smartphone, see the User guide. Access point.
