Events. Web client user

Event logs

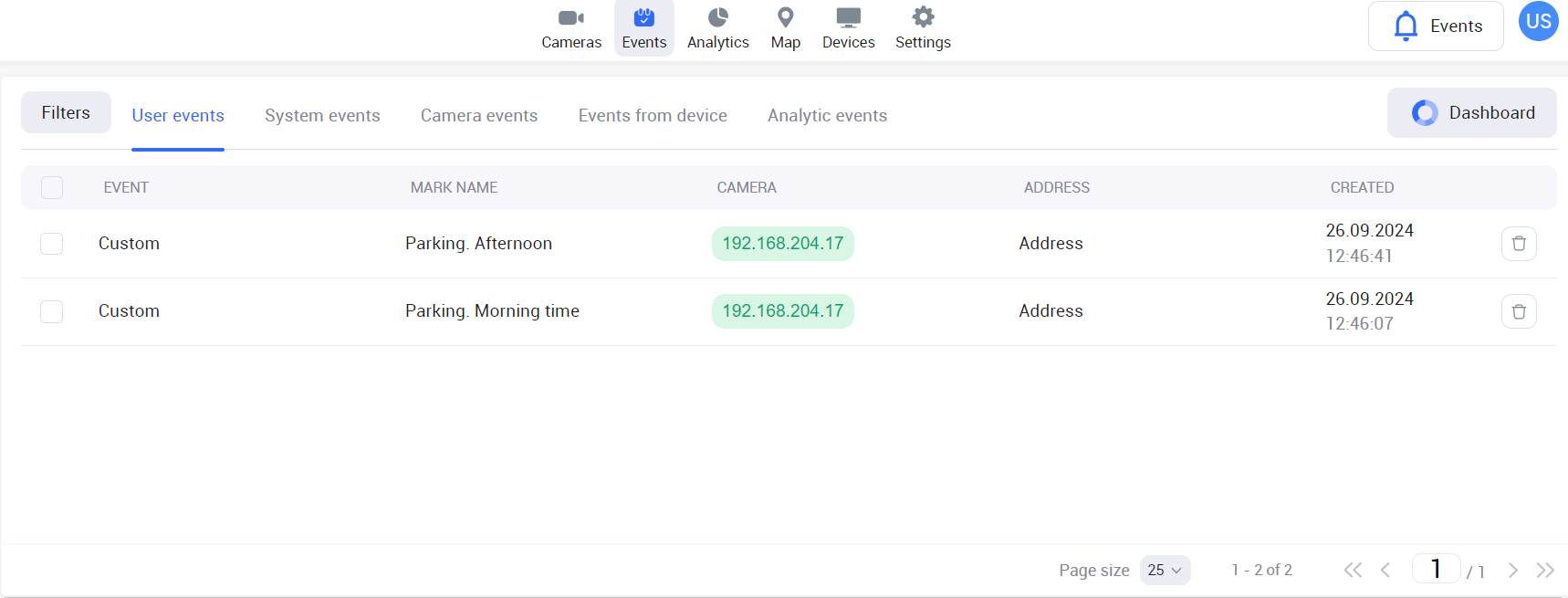

On the Events tab, the user can view the event logs:

• User events. These include the events that were manually added by users while viewing camera archives.

• System events. These include:

  • Changes in low/high-quality stream activity.

  • Billing events.

  • Auto-provisioning events.

  • Changes in the camera status.

• Camera events. These include SMPT motion detection events and other events received from ONVIF-compatible cameras.

• Events from device. These include the events from bridges.

• Analytics events. Events that occurred within a previously added analytics case in the user interface.

You can access the video archive footage for the user events, camera events, and analytics events.

Filters

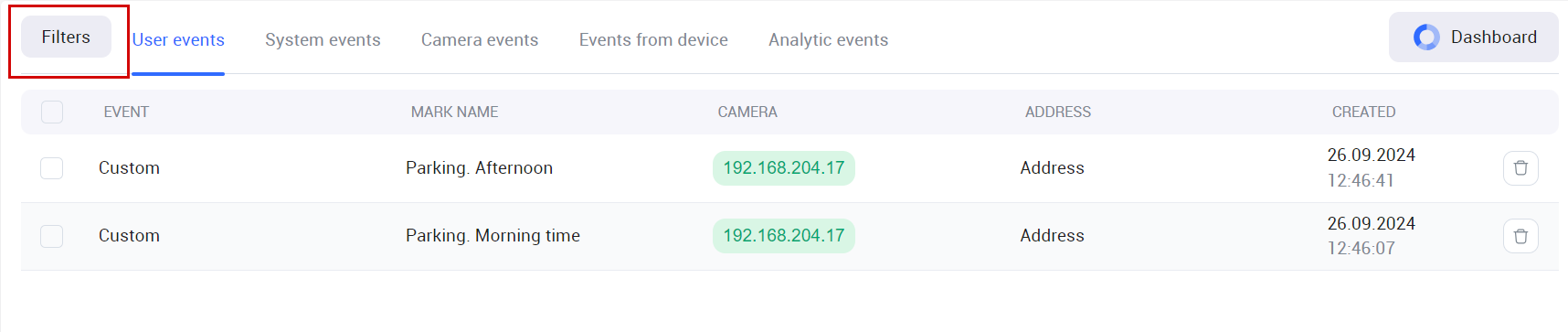

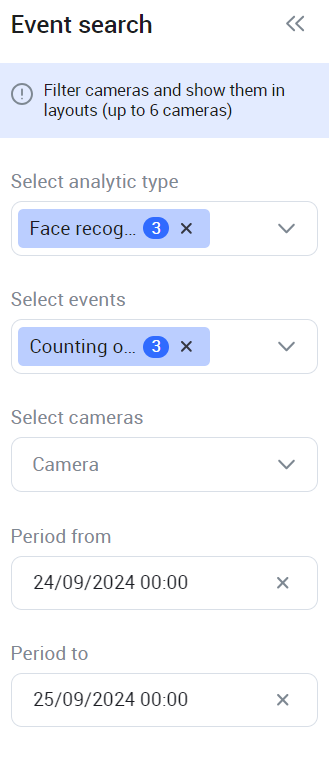

For a faster event search, use filters. To open the filter panel, select the Filters button.

With filters, you can filter events according to the event types. Event types differ with regard to which tab is currently open:

On the User events tab, the following event type filters are avaibale:

• Events that were added by the user while watching the video footage in the player.

• Motion detect SMTP. Events that occurred within a secluded period that the administrator set for this camera in their interface.

On the System events tab, the following event type filters are avaibale:

• Stream high active.

  • Stream high inactive.

  • Stream low active.

  • Stream low inactive.

On the Camera events tab, the following event type filters are avaibale:

• Motion detect SMTP. Includes all events of SMTP motion detection, regardless of whether a schedule is set for camera event markers.

• Events received ftom the ONVIF-compatible cameras:

  • Motion detect.

  • Tamper detection. Image too blurry.

  • Tamper detection. Image too dark.

  • Tamper detection. Image too bright.

  • Tamper detection. Global scene change.

  • Event from external system.

  • Event to external system.

  • Configuration changed.

On the Events from devices tab, the following event type filters are avaibale:

• System. Bridge activated.

• System. Bridge deactivated.

On the Analytics events tab, the following event type filters are avaibale:

• Face recognition

• Counting objects in an area

• Zone intrusion detection

• License plate recognition

• Visitor counting

• Camera damage/overlap/vandalism detection

• Detection of loud sounds

• Smoke and fire detection

• Line crossing detection

• Container number recognition

Event types are displayed depending on the user access rights.

Additionally, you can use the period filtering. Here, you can specify only the start or end date.

The search is carried out automatically.

Choose how many events you want to see on a single page 25, 50, or100 lines.

Pagination is supported, as well as quick navigation to the beginning or end of the list.

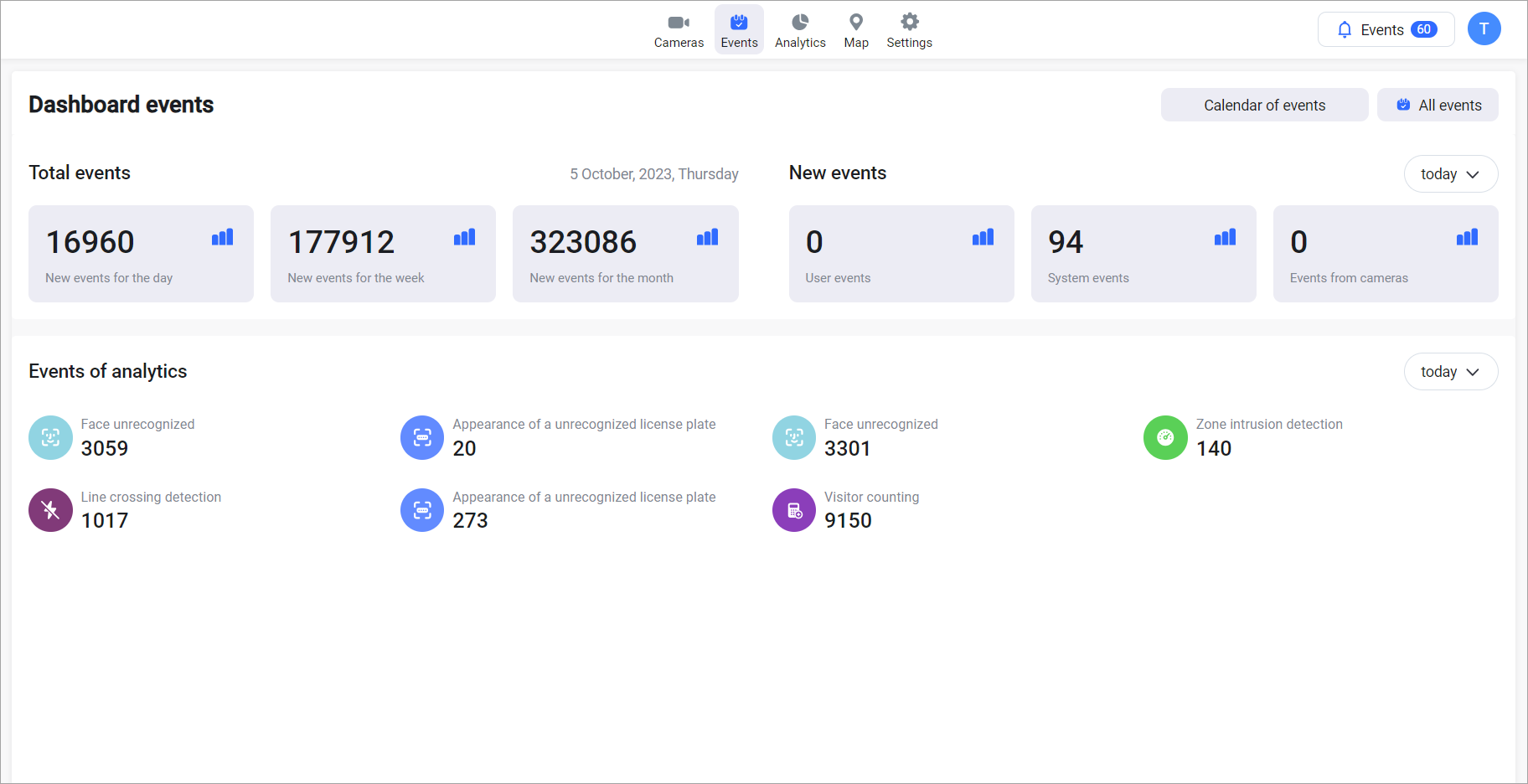

Event dashboard

The event dashboard provides summarized information on events over a specific period.

Under Total events, you can view the total number of events:

• Total new events for the current day.

• Total new events for the current week.

• Total new events for the current month.

Under New events, you can view the total number of events of each type with the option to select a viewing period:

• Total user events for the period.

• Total system events for the period.

• Total camera events for the period.

Under Analytics events, you can view the total number of analytics events for each analytics type with the option to select a viewing period.

You can navigate from the dashboard to event pages, and clicking on an event will take you to the corresponding event tab.

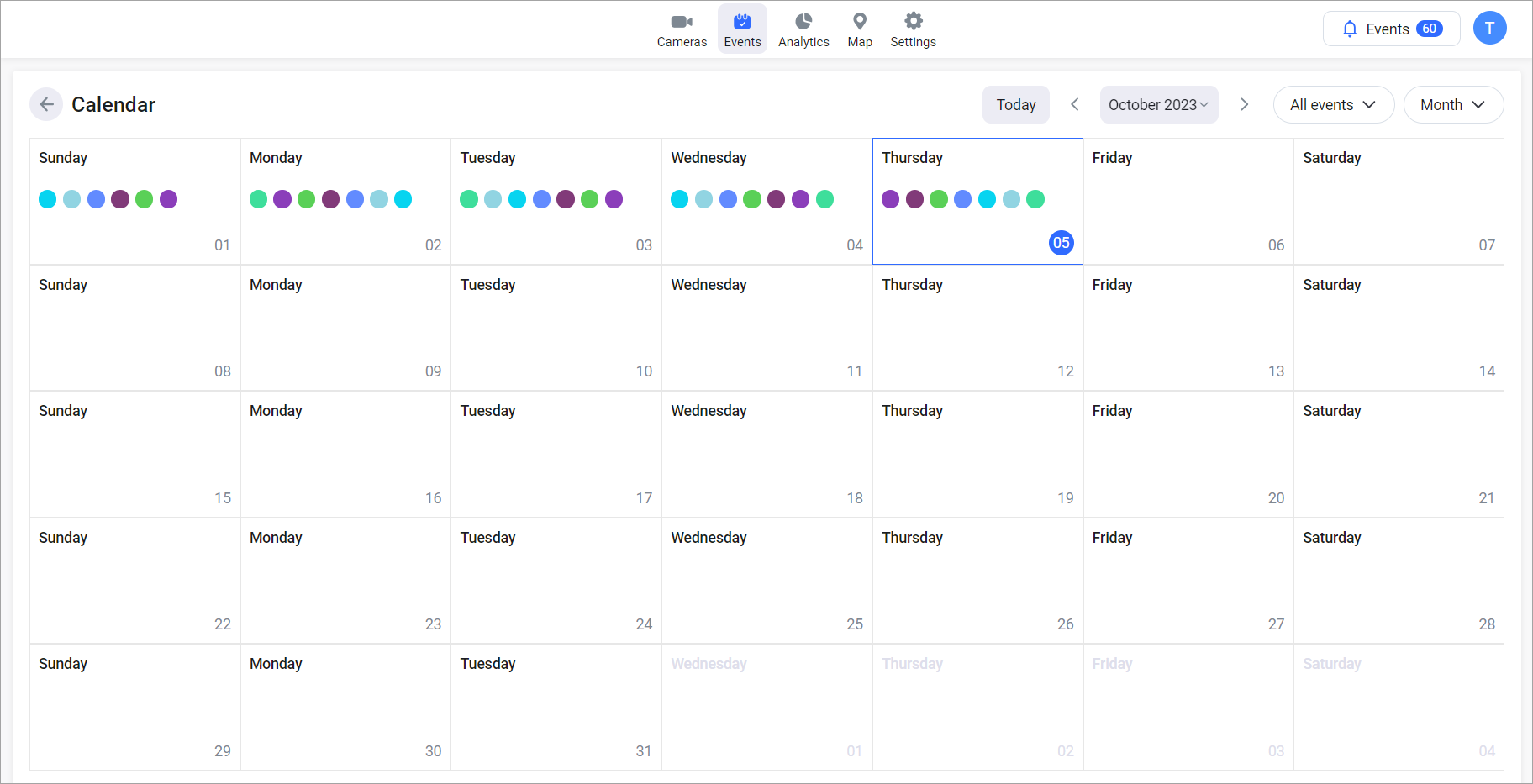

Event calendar

The event calendar provides summarized event information in different views:

• For the month

• For the day

To view the calendar, click the Calendar of events button. Each cell on the calendar displays the presence of events for a specific date. Depending on the type of analytics, events are color-coded.

If needed, you can use < and > buttons to select the previous or next month.

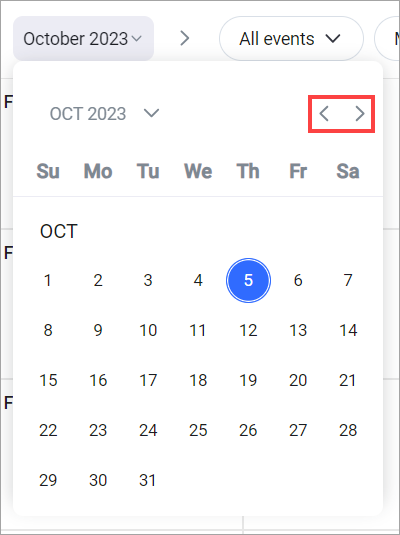

You can also click on the month selection button and choose a month using the < and > buttons.

Clicking Today returns you to viewing the calendar for the current month, with the current day highlighted.

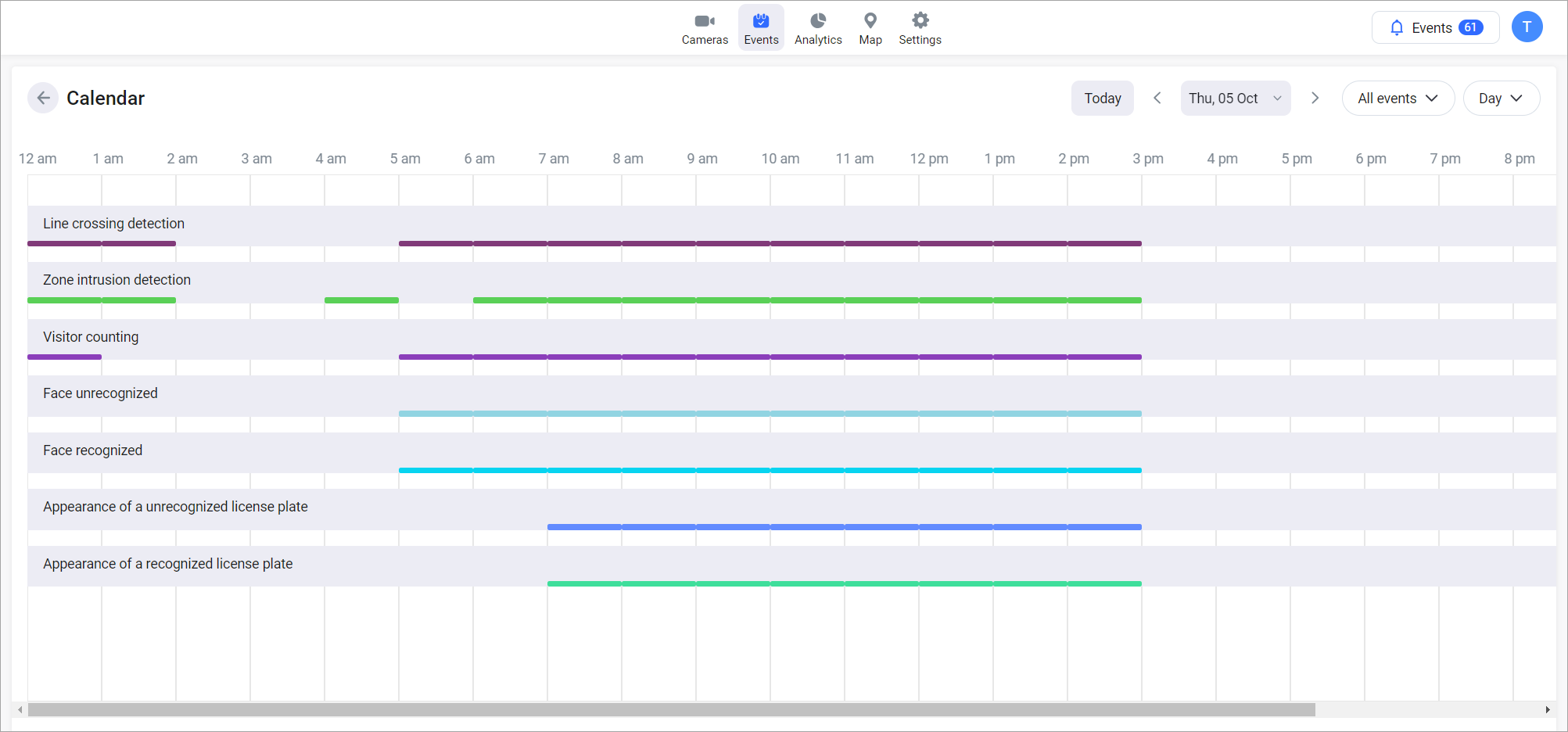

To view detailed event information for a specific day, click the relevant cell on the calendar. This displays a detailed description of events for the selected day, including the option to view previews or navigate to the player for playback.

If needed, you can use the < and > buttons to select the previous or next day.

In this mode, using the < and > buttons, you can select the previous or next day.
